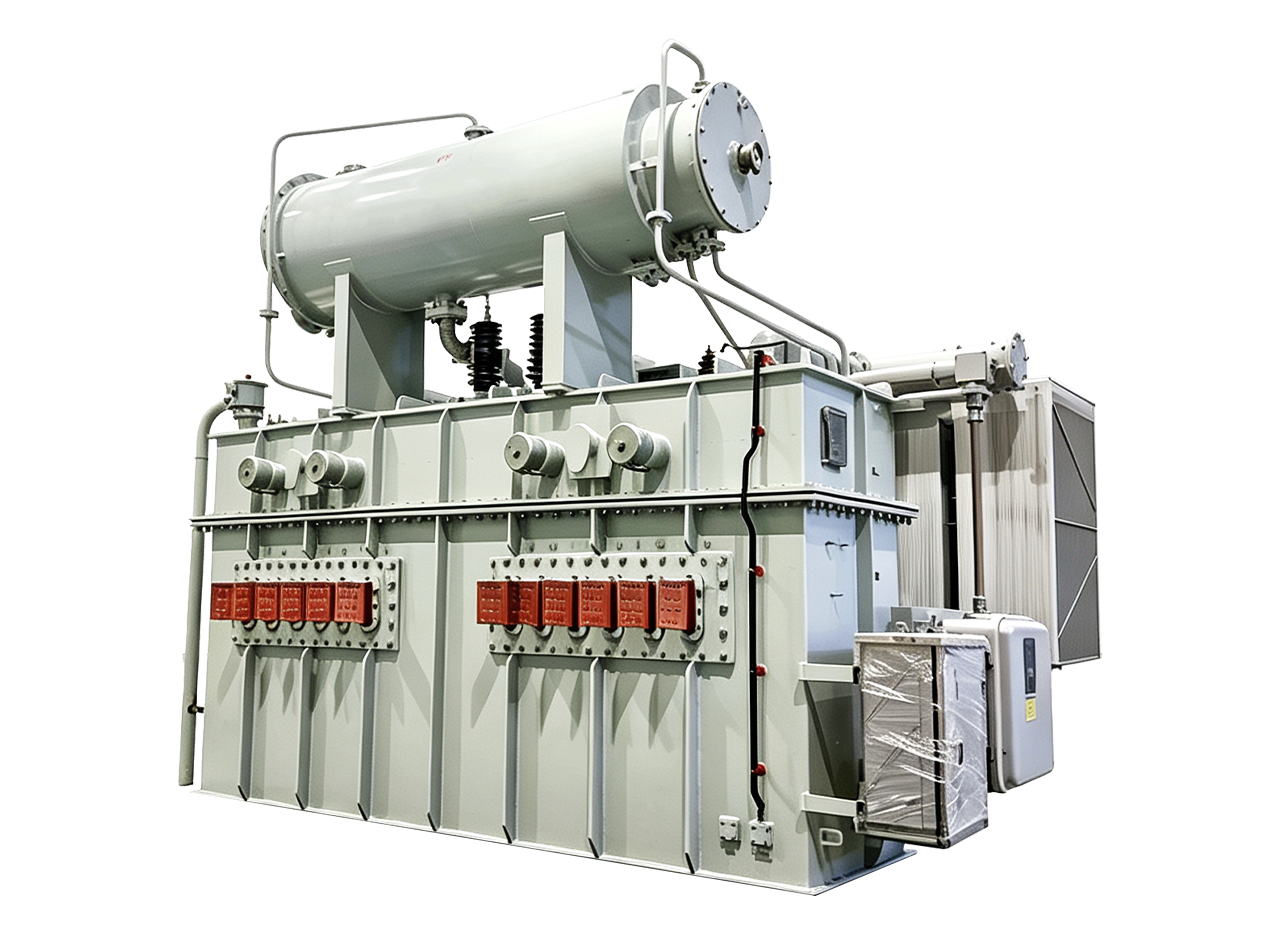

Rectifier transformer

Features

  • Low loss
  • Low partial discharge
  • Multi-pulse
  • Compact size

Product specifications:

  • Rated power: 5000 to 20000 kVA
  • Rated voltage: 35/0.5 to 1kV
  • Short-circuit impedance: 5.5 to 10%
  • Phase-shift angle: 0 to 30
  • Cooling method: ONAF (oil natural, air forced cooling)

Normal operating condition

  • Altitude: ≤ 1000 m
  • Ambient temperature: -15℃ to +40℃
  • Relative humidity: ≤ 90% (25℃)
  • Installation location: indoor or outdoor

*Note: Transformers for use under special conditions can be provided according to order requirements.

Specifications

Rated power 5000 to 20000 kVA
Rated voltage 35 / 0.5 to 1 kV
Short-circuit impedance 5.5 to 10%
Phase-shift angle 0 to 30
Cooling method ONAF (oil natural, air forced cooling)
