WIND ENERGY

Global Provider of Reliable and Cost-effective Working-at-height Solutions and Services

Product innovation drives change in wind turbine tower climbing, and service differentiation leads wind energy maintenance standards.

The range of 3S INDUSTRY products & solutions for the wind energy industry includes Service Lift, Climb Auto System, Auto Hatch Opener, Climb Assist, Offshore Davit Crane, Aluminum Ladder and Suspended Platform which are suitable for use across a range of wind energy applications.

Service Lift

The Service Lift is a lifting equipment installed inside the tower, and powered by a motor or elevator, moving up and down along the guide ladder or steel wire rope to transport workers and tools from the starting platform to the working platform.

FIND OUT MORE
  • Rated capacity: 350 kg
  • Capacity: 3 people
  • Speed: 18 m/min, 21 m/min
  • Power supply: 4 kW

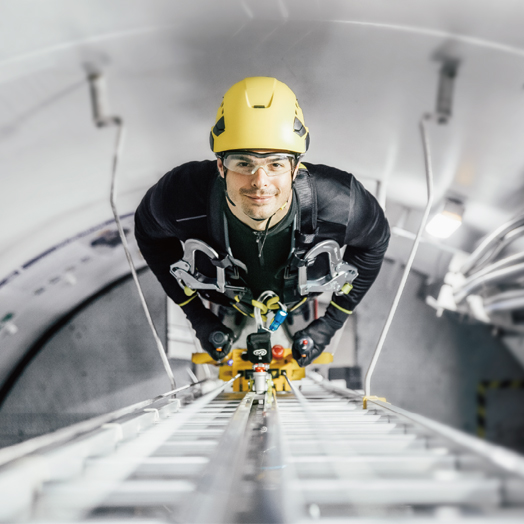

Climb Auto System

No more climbing – thanks to the Climb Auto System.It is a kind of tower lifting equipment that can carry 1 person, which is mainly used in the market of wind power technology reform.

FIND OUT MORE
  • Dimensions: 415 x 390 x 1180 mm
  • Man load capacity: 140 kg (310 lbs)
  • Freight load capacity: 60 kg (132 lbs)
  • Speed: 18 m/min

Climb Assist

The product has obtained CE certification, OSHA test reports, third-party testing agency’s performance test reports, and low-temperature test reports, ensuring the safety and reliability of the product.

FIND OUT MORE
  • Lifting force: Adjustable from 30–50 kg
  • Lifting speed: max. 37 m/min
  • Wire rope diameter: 6 mm
  • Protection class: Motor: IP 55; Control box: IP 66

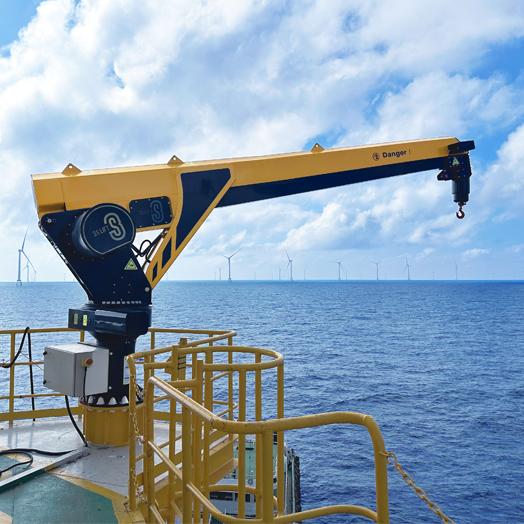

Offshore Davit Crane

The Offshore Davit Crane, specially designed for offshore wind turbine platforms, is your reliable solution for safe and efficient spare parts loading and unloading from supply ships at sea.

FIND OUT MORE
  • Slewing Radius: 2m~12m
  • Safe Working Load: 500kg~2000kg
  • Lifting Height: 20m to 30m
  • Power Supply: 400V/690V

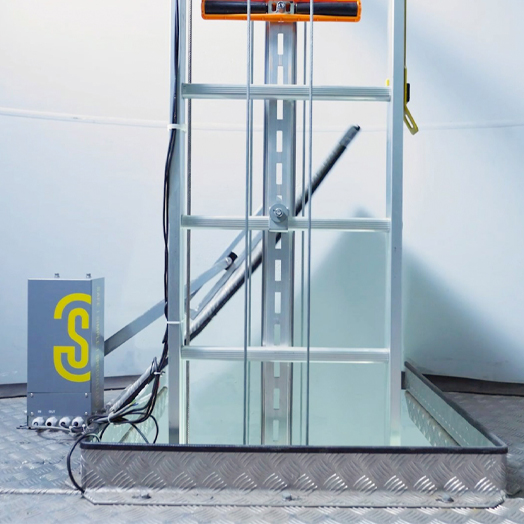

Auto Hatch Opener

The Auto Hatch Opener makes Climb Auto System operation even more convenient by automatically opening and closing platform hatches as the car passes through them.

FIND OUT MORE
  • Dimensions: 172 mm × 131 mm × 408 mm
  • Power: 60W
  • Anti-corrosion grade: C4
  • Certification: CE, ETL

Aluminum Ladder

The Aluminum Ladder is made from high-strength specialized aluminum alloy material, offering high strength, excellent oxidation resistance, and corrosion resistance. All test data exceed the standard requirements.

FIND OUT MORE
  • Standard width: 470 / 490 / 520 / 575 mm
  • Section length: 4200 / 5040 / 5880 mm
  • Rung distance: 280 mm
  • Rung dimensions: 30 x 30 mm

Suspended Platform

The Suspended Platform is widely used in wind power tower cylinder cleaning and maintenance, blade maintenance and maintenance in construction, hydropower, thermal power, petrochemical and other fields.

FIND OUT MORE
  • Model: SOFIT-Z3
  • Rated weight: 350 kg
  • Lifting speed: 9m/min
  • Length: 1-18 m (customizable)

WHY CHOOSE 3S INDUSTRY WIND ENERGY
PRODUCTS & SOLUTIONS

20 Years Of Industry Experience
Leading R&D Capability
Excellent Quality Management System
Professional Global Service Capability
