Battery

Ladder Hoist

Battery ladder hoist solution eliminate cords, reduce trip hazards, and keep your team productive. Specifically engineered for solar, roofing, moving and construction. It delivers reliable, high-performance operation anytime, anywhere, maximizing convenience and efficiency for daily tasks.

Battery Ladder Hoist

Download brochure

Battery Ladder Hoist

Features

  • Dual-battery compatibility
  • Wireless operation
  • Automatic tilting platform
  • Fall arrest protection

Advantages

  • Compatible with DEWALT® and Milwaukee® battery platforms.
  • No external power supply or trailing cables required.
  • Platform tilts over the head section for easy unloading at roof level.
  • Independent mechanical safety device stops the drive unit if the rope fails.

Benefits

  • Lower Investment: Uses batteries already available on site.
  • Site Flexibility: Easy to deploy where power access is limited.
  • Safer Unloading: Reduces reaching and manual handling at the roof edge.
  • Enhanced Safety: Prevents uncontrolled descent.

SPECIFICATIONS

Battery Ladder Hoist

Model MH04L120
Rated Load 120 kg / 264 lbs
Lifting Speed 15 m/min / 49 ft/min
Max. Ladder Length 14 m / 45 ft
Motor Power 0.55 kW / 0.73 hp
Battery 2 × 18 / 20 V, 5 / 6 Ah (DeWalt® or Milwaukee®)
Operating Temperature - 20 °C to + 40 °C / - 4 °F to + 104 °F
IP Class IP 54 (electrical)
Noise Level ≤ 79 dB
Compliance 2006/42/EC (MD), EN 12158-2, ASME B20.1

Scenarios

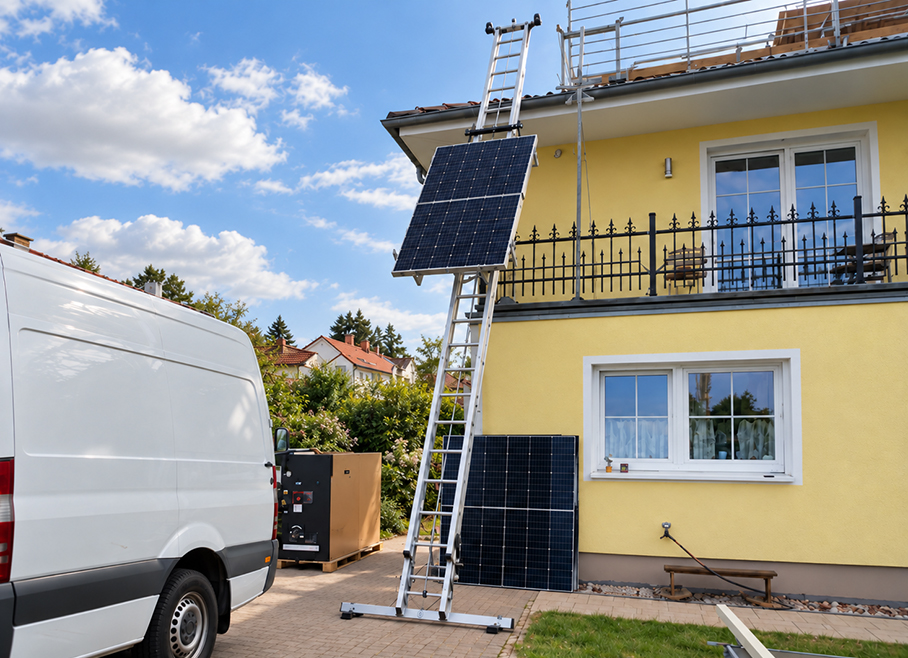

Roof photovoltaic installation

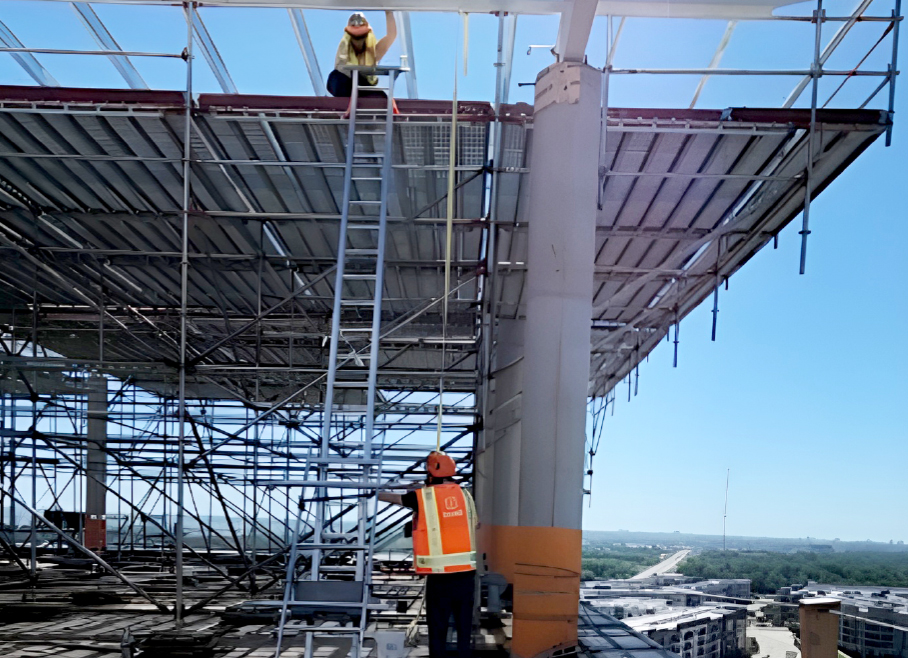

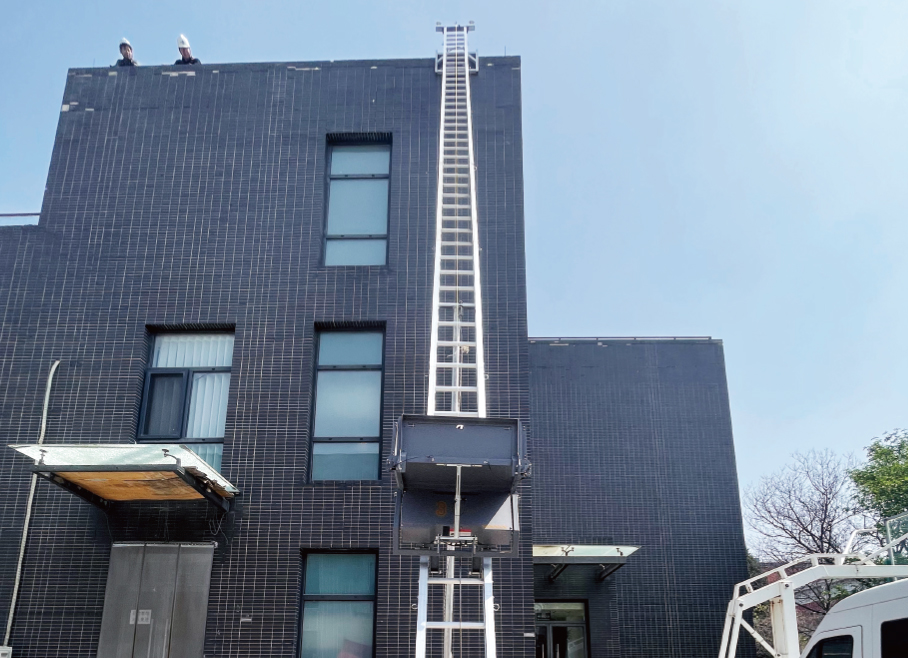

Building materials handing
Residential projects
