Tower Climber

Easy Ascent for Crane Operators

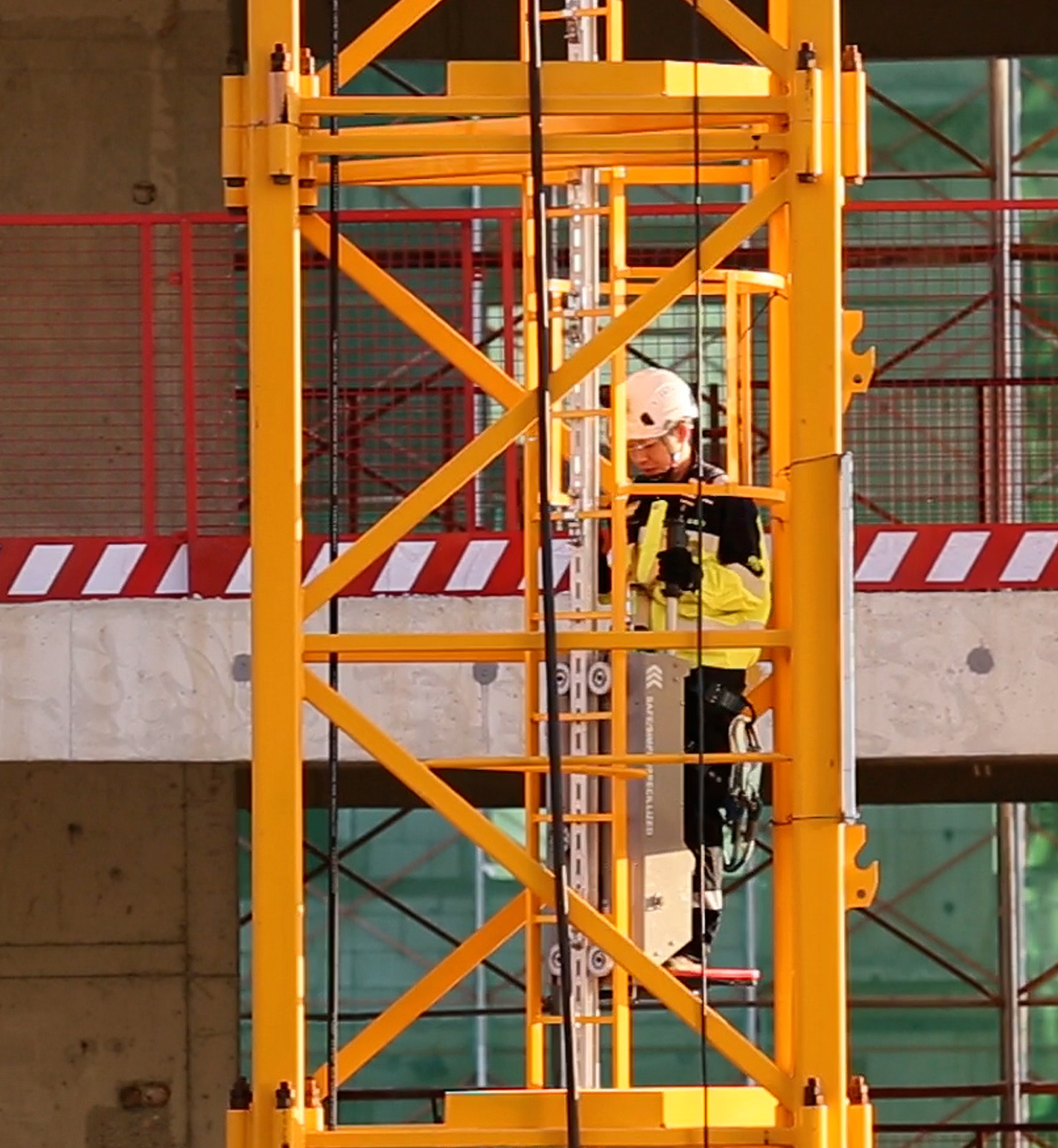

The 3S LIFT Tower Climber is a lithium battery powered climb-aid equipment used on the tower crane. It can be installed within the tower section, or on the existing ladder within the tower.

With the advantages of high safety, stable running, compact structure design, simple operation, and easy installation & disassembly, the Tower Climber enables the operator to get on and off the crane with improved safety and efficiency.

The Tower Climber is designed and manufactured to the latest European standards and has passed the CE certification.

Tower Climber

Download brochure

1 / 6

2 / 6

3 / 6

4 / 6

5 / 6

6 / 6

Videos

Easy Ascent for
Crane Operators

6 Safety Features

•    Dual fall protection system (independent fall arresters
for the car and the operator)

•    Upper/lower limit function

•    Manual descent function

•    Overload protection

•    Two-hand switch control

•    Low-power protection

Smooth and Stable Running

Easy and Efficient Installation

Multiple Usage Scenarios

The Tower Climber can be applied in various industries, such as tower cranes, wind turbine towers, high-voltage power transmission towers, cooling towers, warehouse storage, Refineries, Grain Silos, bridge tower inspections, etc.

Safety and efficiency when working at height

Upper-End Stop with Buffer

Two mechanical end stops with buffers are installed at the upper and lower ends of the guide rail, respectively. This can prevent the car from overrunning the running pathway in the event of switch failure.

Operator Fall Arrester

The Operator fall arrester is connected to the guide rail and full body harness. When accidents happen, fall arrester locks inside the guide rail immediately to prevent serious injury.

Manual Descent Function

In case of sudden power failure, the operator can operate the manual descent lever to descend the car safely and steadily.

Car Fall Arrester

The Car Fall Arrester is located on the lift’s car and runs inside the guide rail. It locks immediately in case of a fall, keeping the car in place and preventing it from falling.

Overload Protection System

Should an overload occur, the Tower Climber will sound an alarm, and the power will instantly be cut off, stopping the lift in place. The Climber will not start again until the overload is corrected.

Lower-End Stop with Buffer

Two mechanical end stops with buffers are installed at the upper and lower ends of the guide rail, respectively. This can prevent the car from overrunning the running pathway in the event of switch failure.

Upper-End Stop with Buffer

Two mechanical end stops with buffers are installed at the upper and lower ends of the guide rail, respectively. This can prevent the car from overrunning the running pathway in the event of switch failure.

Operator Fall Arrester

The Operator fall arrester is connected to the guide rail and full body harness. When accidents happen, fall arrester locks inside the guide rail immediately to prevent serious injury.

Manual Descent Function

In case of sudden power failure, the operator can operate the manual descent lever to descend the car safely and steadily.

Car Fall Arrester

The Car Fall Arrester is located on the lift’s car and runs inside the guide rail. It locks immediately in case of a fall, keeping the car in place and preventing it from falling.

Overload Protection System

Should an overload occur, the Tower Climber will sound an alarm, and the power will instantly be cut off, stopping the lift in place. The Climber will not start again until the overload is corrected.

Lower-End Stop with Buffer

Two mechanical end stops with buffers are installed at the upper and lower ends of the guide rail, respectively. This can prevent the car from overrunning the running pathway in the event of switch failure.

01 / 03

Key Features

  • Two-handle start-up switch
  • Remote operation system
  • Top and bottom limit and ultimate limit protection
  • Low battery protection function
  • Audible and visual alert while running
  • Collapsible footboards

SPECIFICATIONS

Tower Climber

Model T150
Capacity 1 person
Weight 70 kg
Rated load 150 kg
Dimensions (380 × 560 ×1340) mm
Speed 18 m/min (2 minutes to reach the top of a 40 m crane)
Distance with one full battery charge ≤1500 m (40 round trips for a 40 m crane)
Protection level IP 65



Noise level ≤79 dB (A)
Corrosion protection C4-L
Operating temperature range -20°C-＋55°C
Wind speed ≤13 m/s (Wind force: 6)
Motor power 1 KW
Insulation class F
Rated voltage 220 V, 50 Hz
Power supply Battery powered
Nominal voltage DC 48 V
Service life 10 years
