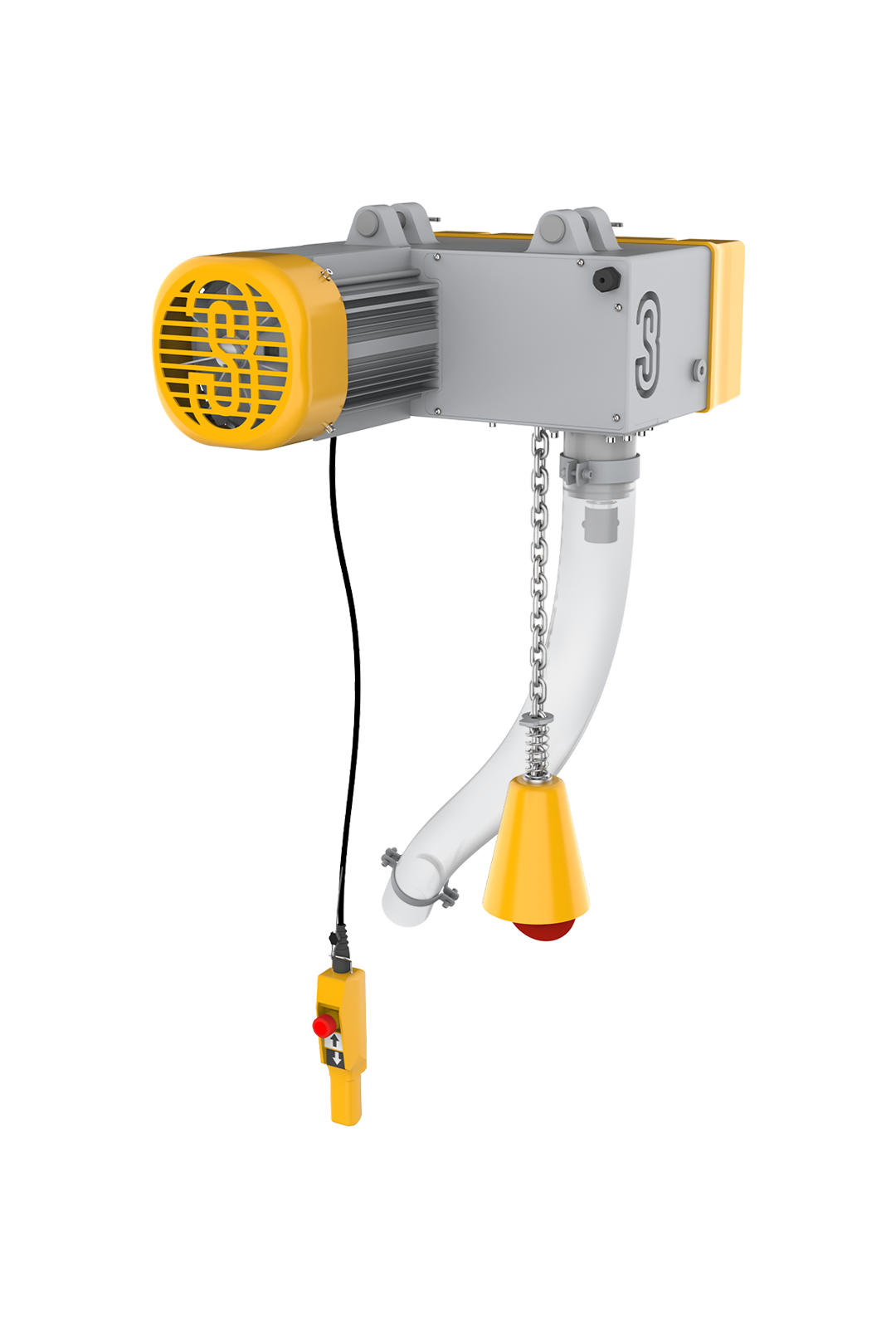

Chain Hoist

A chain hoist solution for high-speed, heavy-duty performance with safe, smooth, and jam-free operation

Our chain hoist is a compact and reliable lifting solution engineered for demanding industrial and construction environments. The compact design facilitates easy installation, while the dual-speed motor and electromagnetic brake ensure precise control and fail-safe operation. Built with G80-grade chain and a high-strength aluminum alloy housing, this CE-certified hoist delivers stable, long-lasting performance even in the toughest working conditions.

Chain Hoist

  • Compact design: Space-saving structure for easy installation

  • Dual-speed motor: Smooth lifting and precise control

  • High reliability: Stable operation, resistant to chain jamming, and low maintenance cost

  • Robust structure: G80-grade chain and aluminum alloy housing

  • Safety upgrade: Overload clutch and dual-limit protection

  • Sealed type: Fully enclosed IP55 rated body

  • Low noise: Precision gear transmission, noise below 80dB even at high-speed operation

  • Long service life: ISO M4 rated, tested for 800-hour non-stop cycle test free of chain jamming

Specifications



Model SECH-1000 SECH-800
Rated load 1000 kg 800 kg
Lifting speed 16 m/min / 4 m/min 16 m/min / 4 m/min
Lifting height ≤ 200 m ≤ 200 m
External dimensions 430 × 200 × 615 mm 430 × 200 × 615 mm
Maximum self-weight
(excluding chain)		 ＜ 80 kg ＜ 80 kg
Power supply 400V 50Hz 400V 50Hz
Lifting chain G80 | 7.1 × 21 mm | EN818-7 G80 | 7.1 × 21 mm | EN818-7
Protection class IP55 IP55
Certification CE CE
