Ladder Hoist

Material Handling Has Never Been Easier

The 3S Lift Ladder Hoist is a customized portable solution for lifting various materials in limited space. It can stably and efficiently lift heavy materials to a designated height.

Application Scenarios:

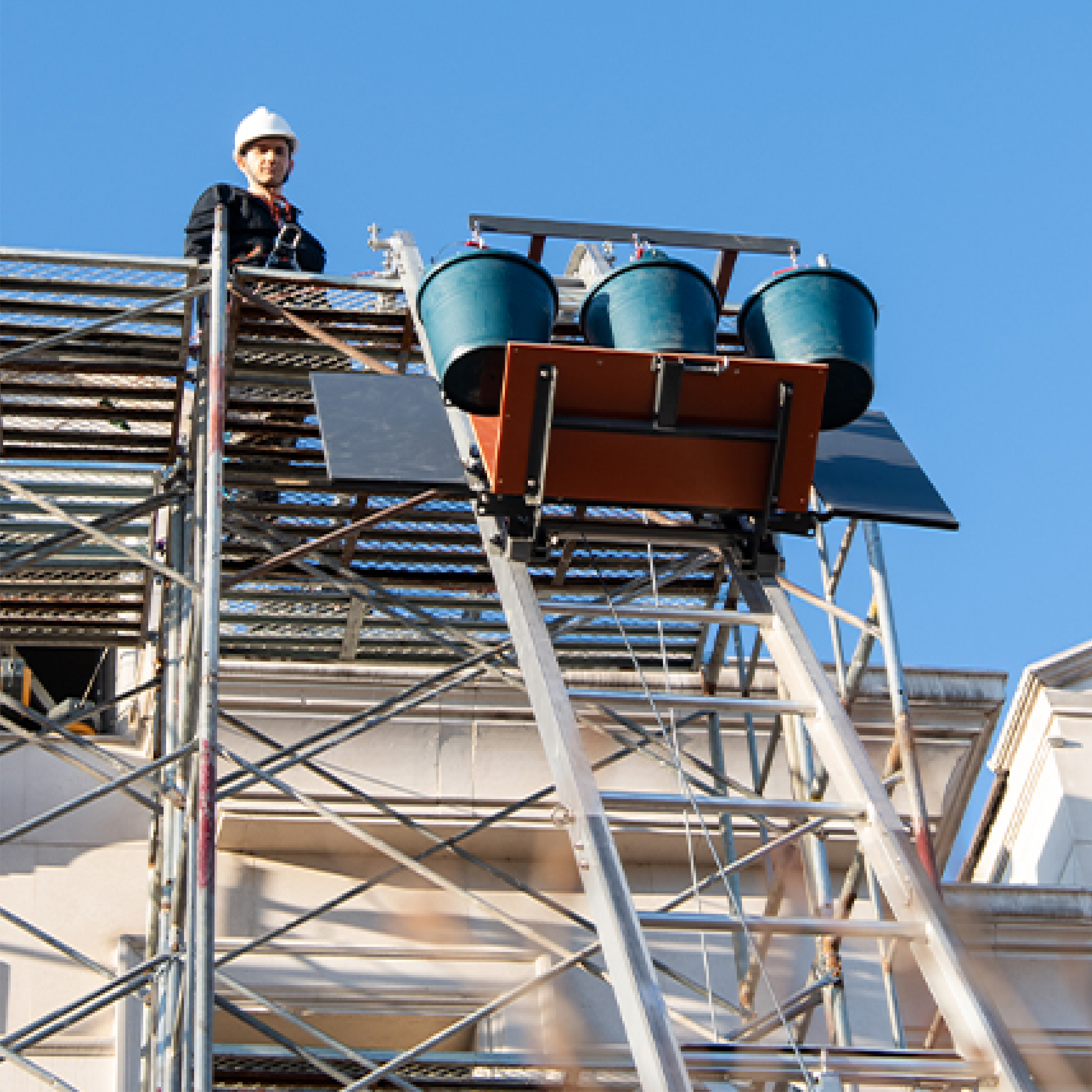

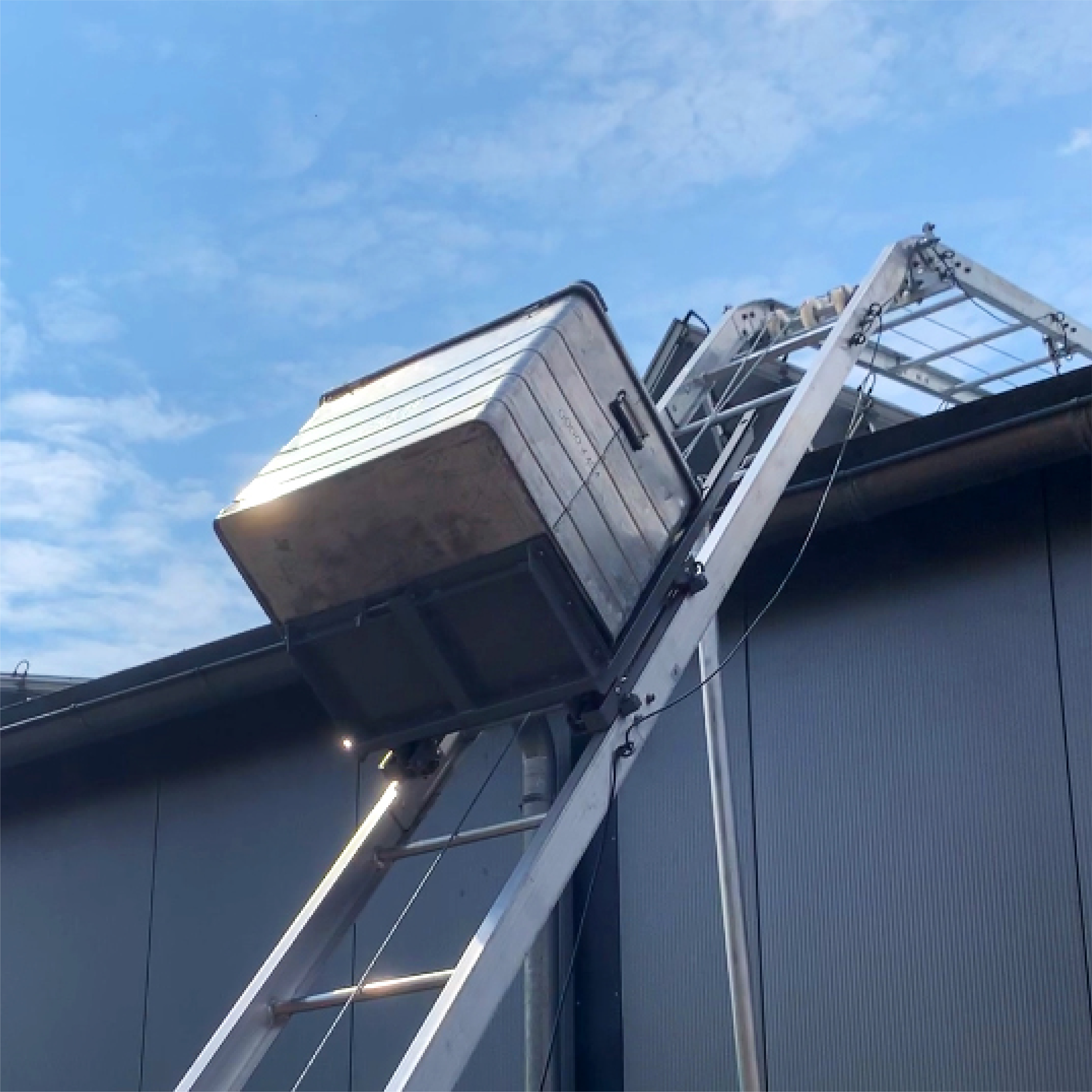

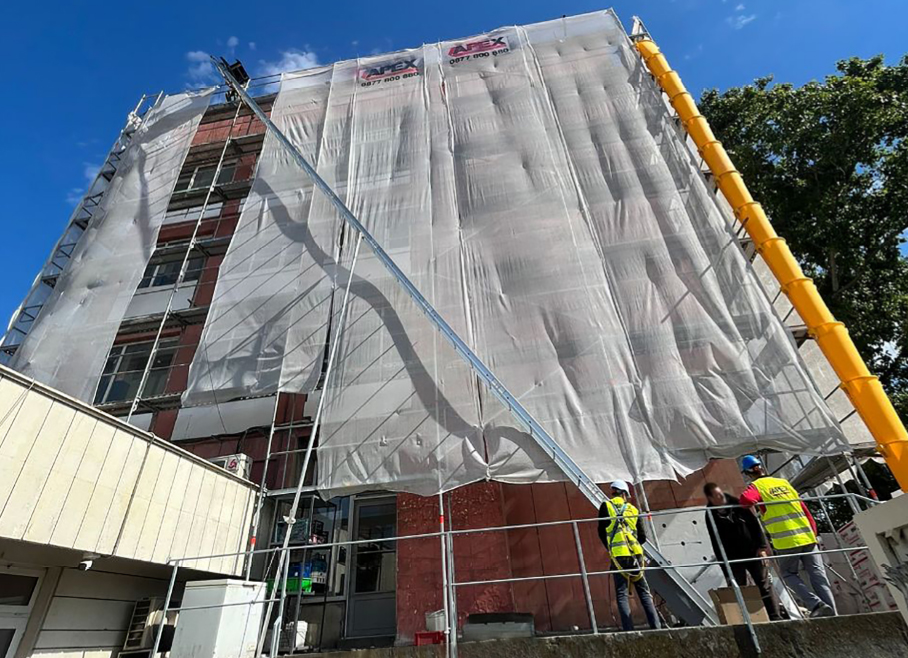

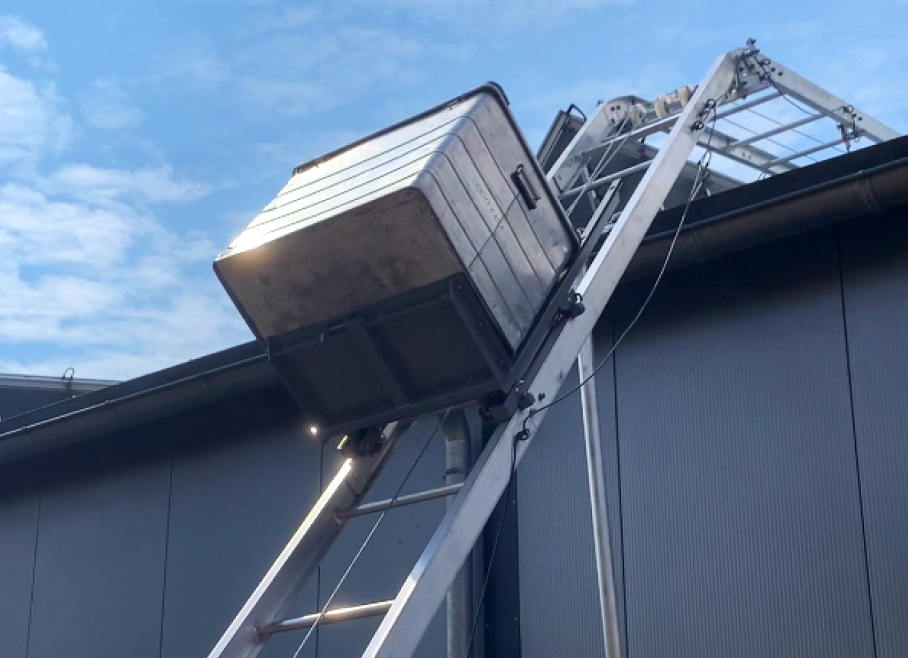

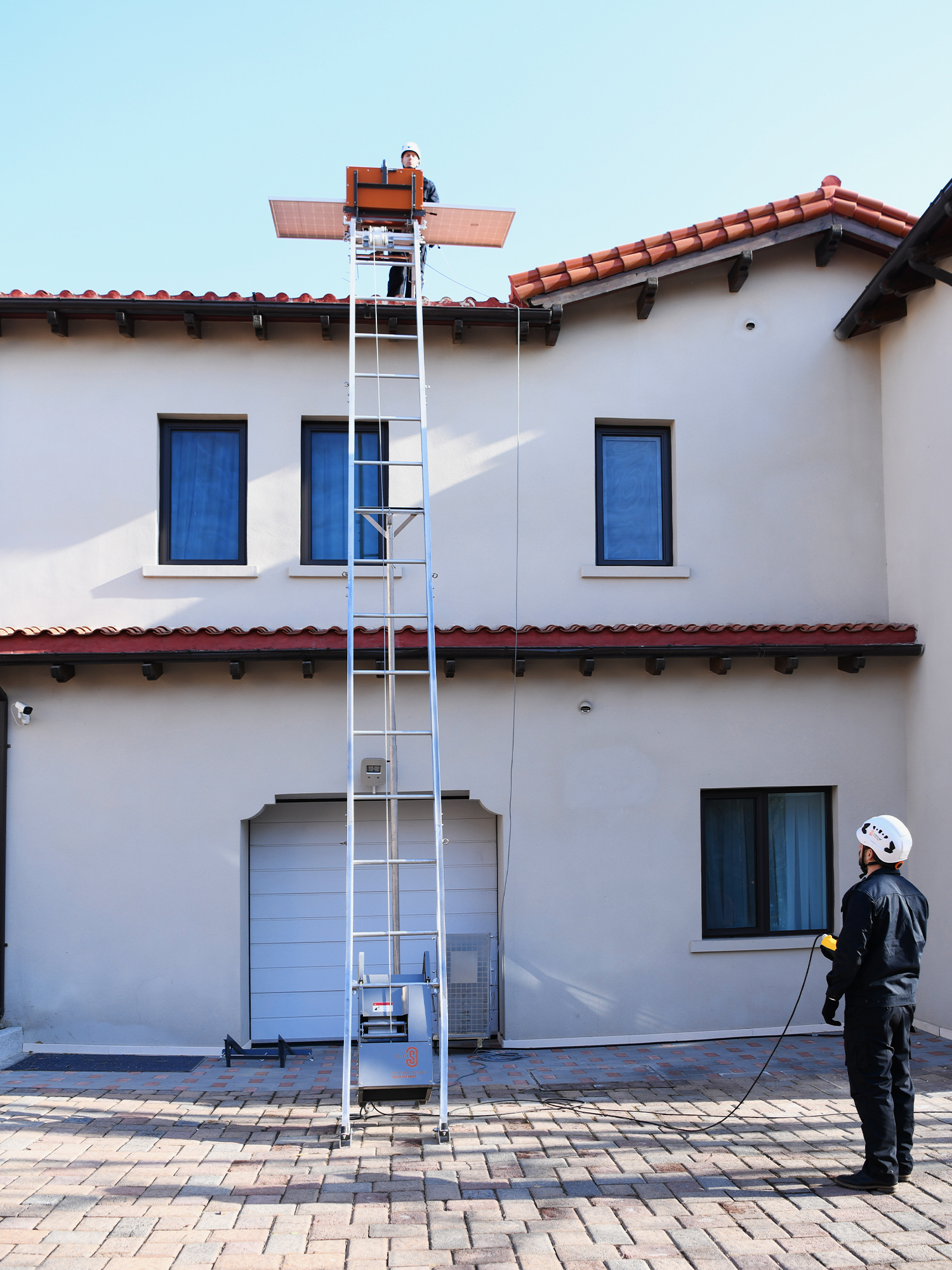

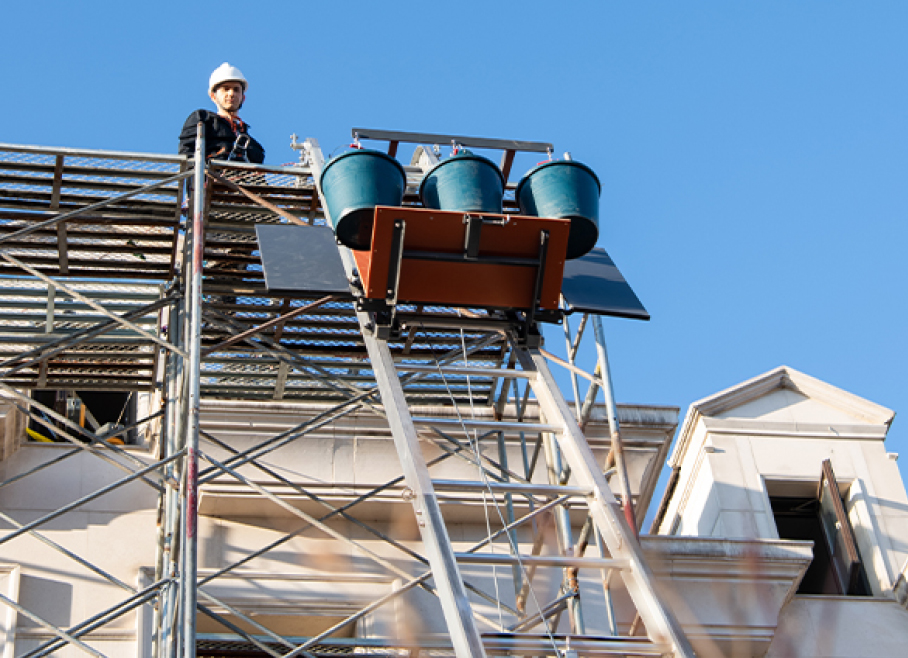

  • Low-rise building construction and maintenance

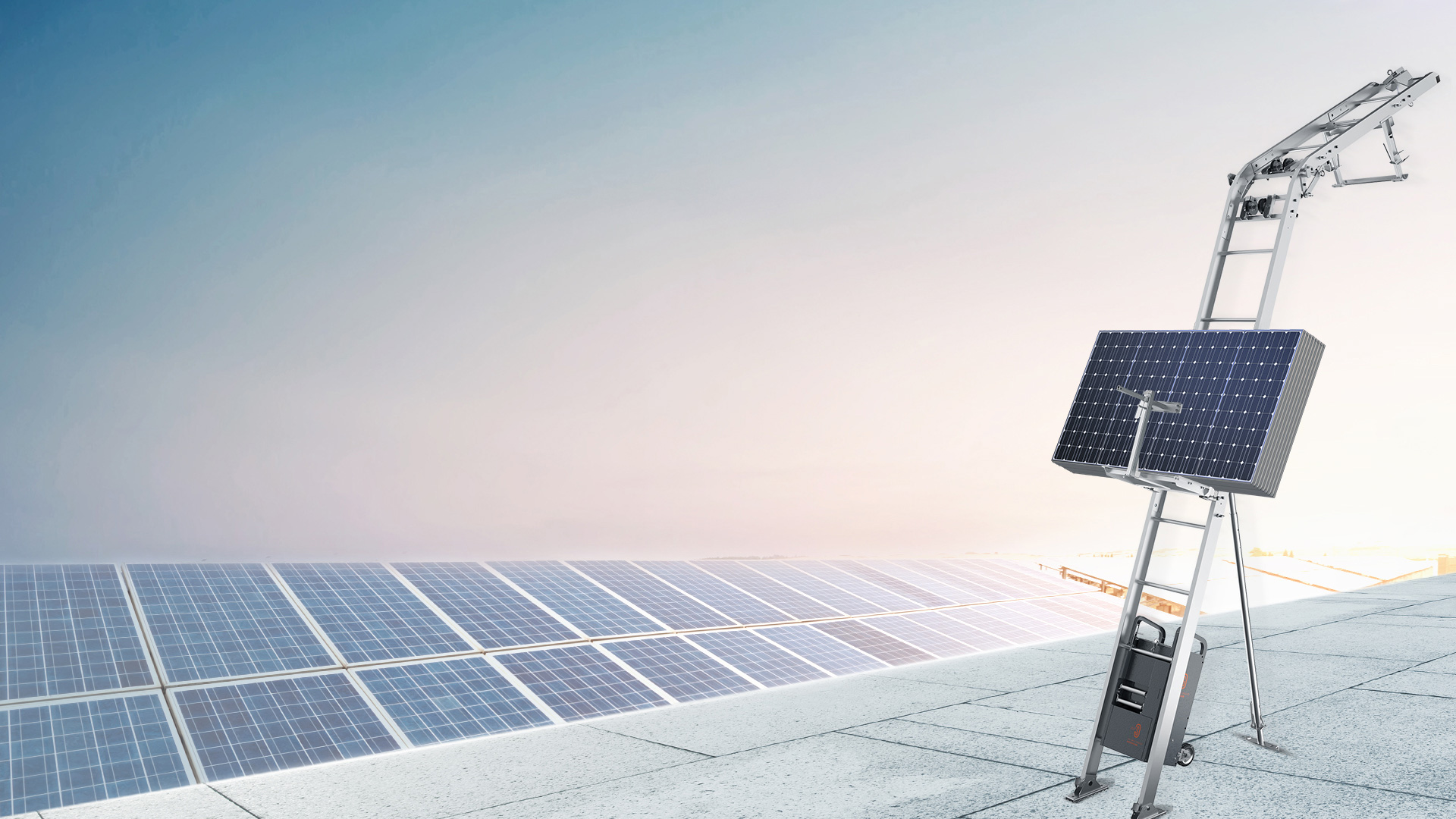

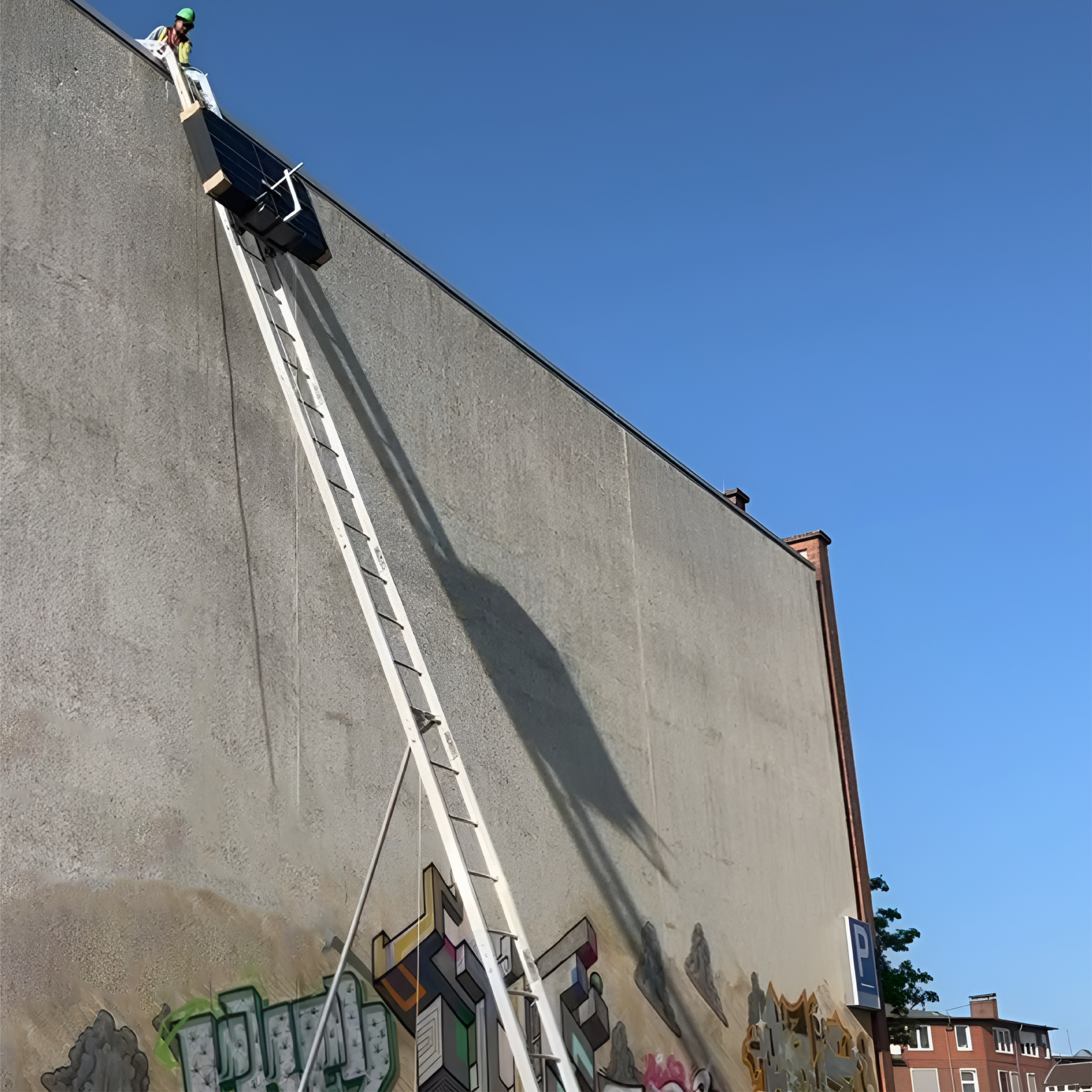

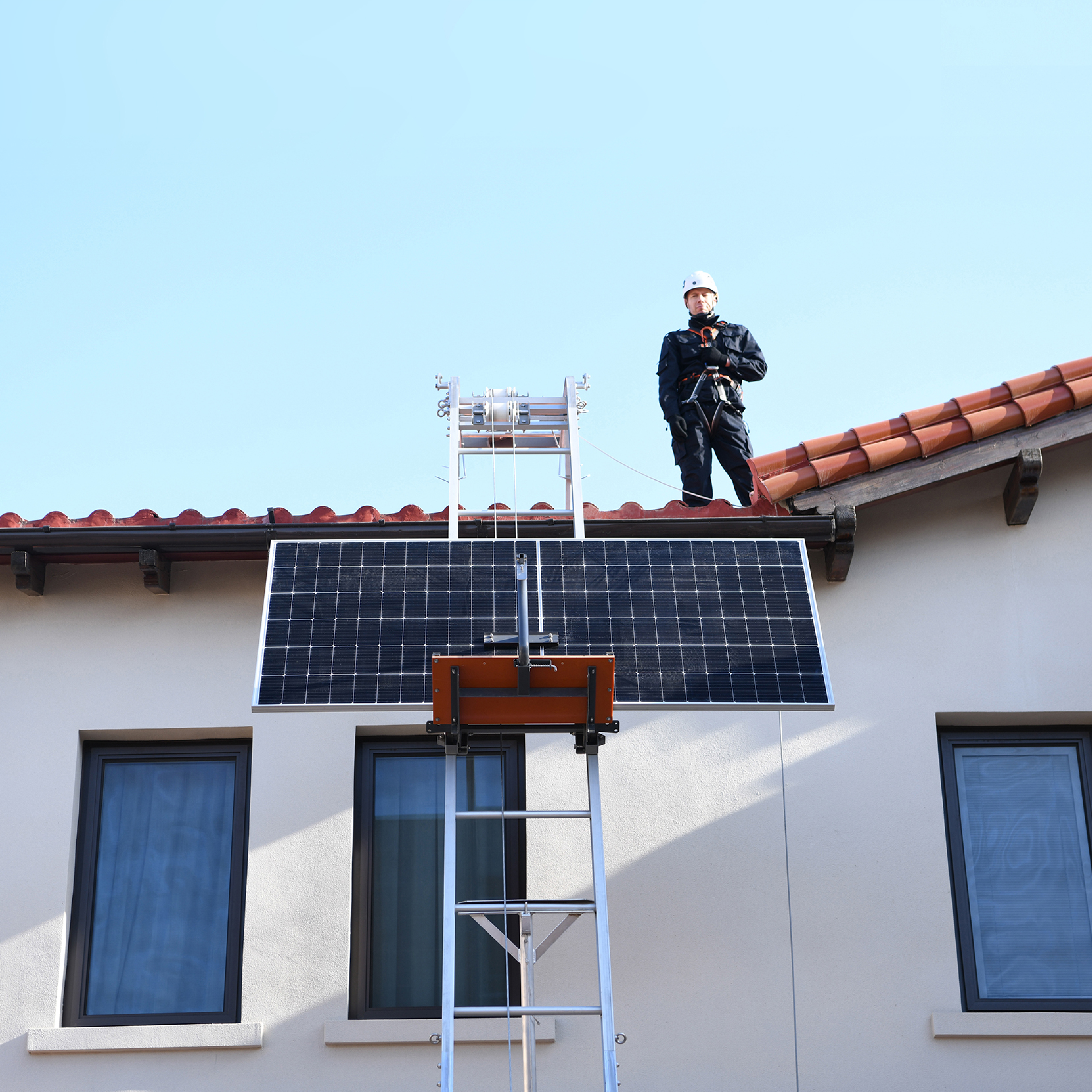

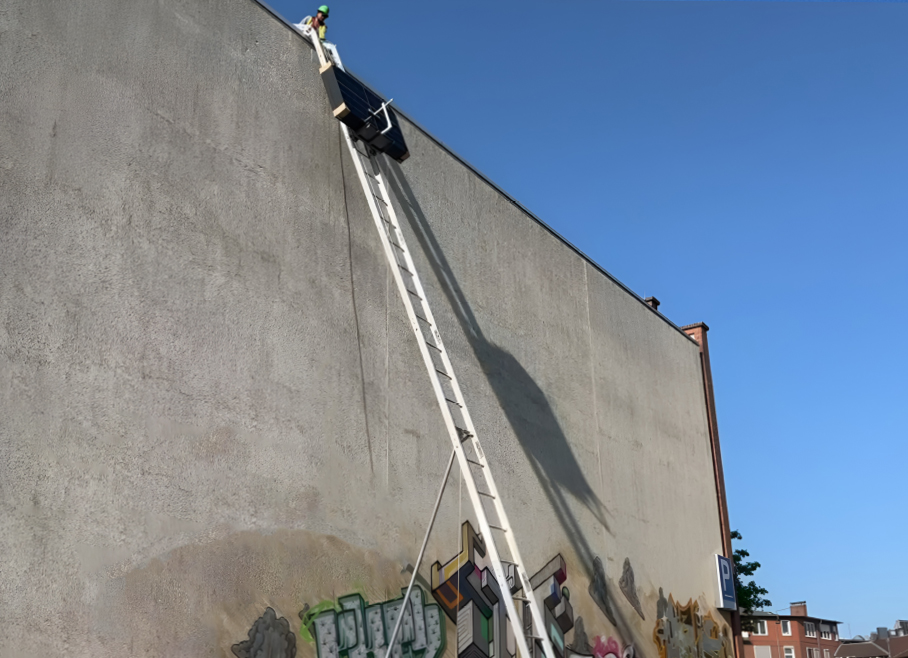

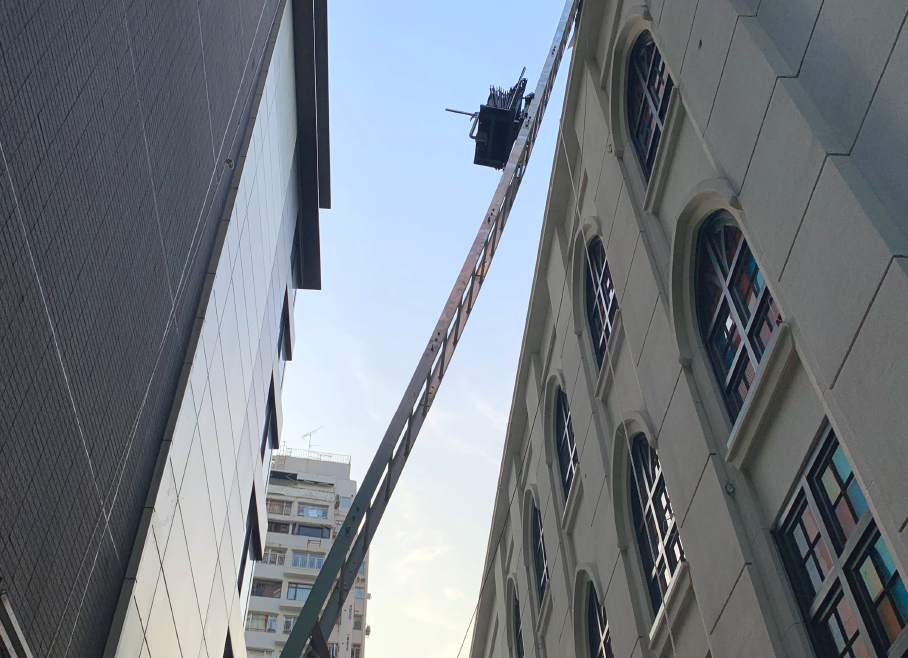

  • Roof photovoltaic installation
  • Logistics cargo lifting (furniture/household appliances), etc.

Ladder Hoist

Download brochure

1 / 6

2 / 6

3 / 6

4 / 6

5 / 6

6 / 6

Videos

Key Features

Simple
100% tool-free installation, using eye-nuts and bolts to connect the rail sections

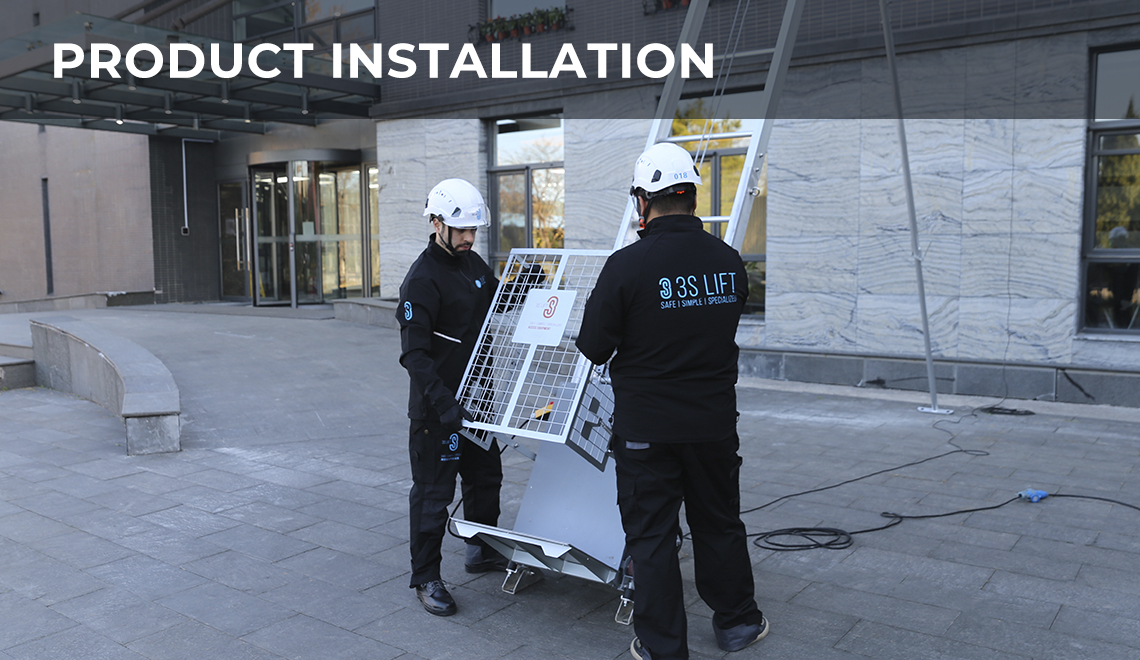

2 people can install the hoist in just 20 minutes (for 10 m rail length)

Portable
Small in size and light in weight, can be easily transported using just regular trucks or vans

Durable
Patented LBS rope groove design extends the service life of wire rope
Patented VFC system helps avoid inertia damage without changing speed
High strength aluminum alloy guide rail, reliable, durable and wear-resistant

Reliable
Equipped with safety catch mechanism, overload monitoring system, power failure protection, and emergency braking system, ensuring the safety of operators, materials, and the product itself

Multi-Purpose

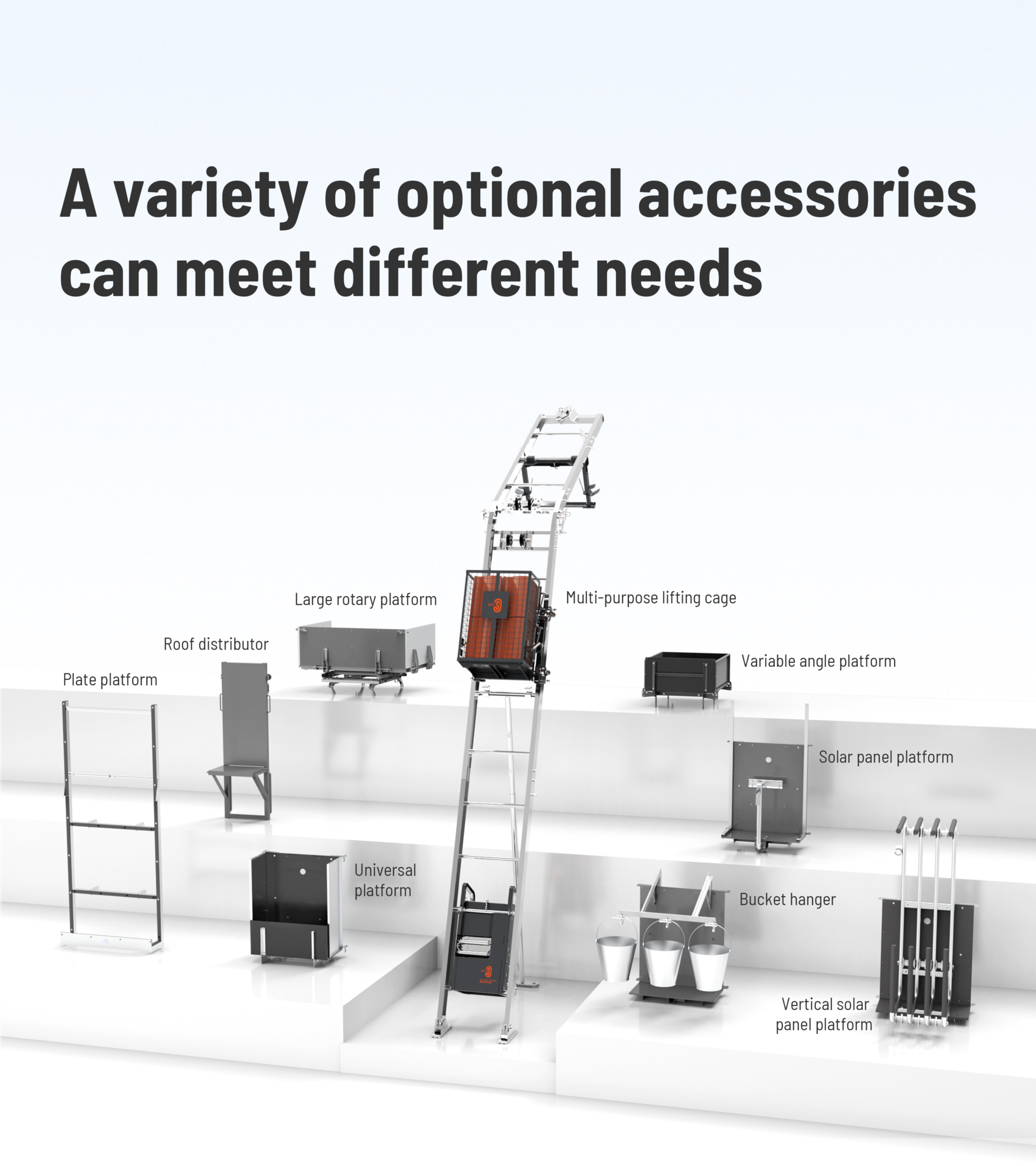

Equipped with a variety of optional platforms, it’s suitable for many applications, such as Roof PV installation, Construction & Maintenance, Logistics & Storage (furniture/home appliances lifting), etc

Smooth Start and Stop (certain models)
The product offers smooth start and stop of operating thanks to the frequency conversion control system

Product Details

Rail Top Section

This section is installed at the top of the rail. It features a steel wire rope reversing wheel that secures the wire rope from falling, providing increased safety. Its carbon steel welding structure makes this section particularly solid and durable.

Roof Support Bracket

This piece provides support to the guide rails on the roof to ensure stability and protect the roof from damage.

Knee Section

The adjustable angle section can be adjusted between 138 ° – 160 ° to allow the rails to fit properly to the roof or other inclined surfaces.

Carriage

For the safe transportation of goods, this robust and durable device is welded with carbon steel and offers a safety catch mechanism in case the wire rope should break.

Multi-Purpose Lifting Cage

The convenient and easy-to-use lifting box can be used to carry a wide range of materials.

Rail Section Connectors

By using special bolts and eye nuts, the connections between rail sections can be installed and disassembled without tools, while still meeting the required torque.

Standard Rail Sections

The standard sections are built with high-strength aluminum alloy.
There are 4 standard lengths available: 2 m, 1 m, 0.75 m, and 0.5 m.
Other lengths can be customized upon request.

Guide Rail Support

The length of the guide rail support can be easily adjusted from 5.4 m to 7.2 m to provide support to guide rails of different heights. Whenever the length of the rails exceeds 11 m, these guide rail supports must be installed to offer appropriate support.

Rail Top Section

This section is installed at the top of the rail. It features a steel wire rope reversing wheel that secures the wire rope from falling, providing increased safety. Its carbon steel welding structure makes this section particularly solid and durable.

Roof Support Bracket

This piece provides support to the guide rails on the roof to ensure stability and protect the roof from damage.

Knee Section

The adjustable angle section can be adjusted between 138 ° – 160 ° to allow the rails to fit properly to the roof or other inclined surfaces.

Carriage

For the safe transportation of goods, this robust and durable device is welded with carbon steel and offers a safety catch mechanism in case the wire rope should break.

Multi-Purpose Lifting Cage

The convenient and easy-to-use lifting box can be used to carry a wide range of materials.

Rail Section Connectors

By using special bolts and eye nuts, the connections between rail sections can be installed and disassembled without tools, while still meeting the required torque.

Standard Rail Sections

The standard sections are built with high-strength aluminum alloy.
There are 4 standard lengths available: 2 m, 1 m, 0.75 m, and 0.5 m.
Other lengths can be customized upon request.

Guide Rail Support

The length of the guide rail support can be easily adjusted from 5.4 m to 7.2 m to provide support to guide rails of different heights. Whenever the length of the rails exceeds 11 m, these guide rail supports must be installed to offer appropriate support.

01 / 04

SPECIFICATIONS

Specifications of the plug-in electric models

Model MH03L250-expert MH03L250-standard MH03L200-standard
Rated load 250 kg 250 kg 200 kg
Lifting speed 30 m/min 30 m/min 25 m/min
Smooth start/stop Yes No No
Max. lifting height 19 m 19 m 19 m
IP class IP 54 IP 54 IP 54
Operating temperature -20℃ – +40℃ -20℃ – +40℃ -20℃ – +40℃
Drive unit weight 80 kg 80 kg 75 kg
Wire rope ∅ 6 mm, with a safety factor of 8 ∅ 6 mm, with a safety factor of 8 ∅ 6 mm, with a safety factor of 8
Power supply 230 V/110 V 230 V 230 V

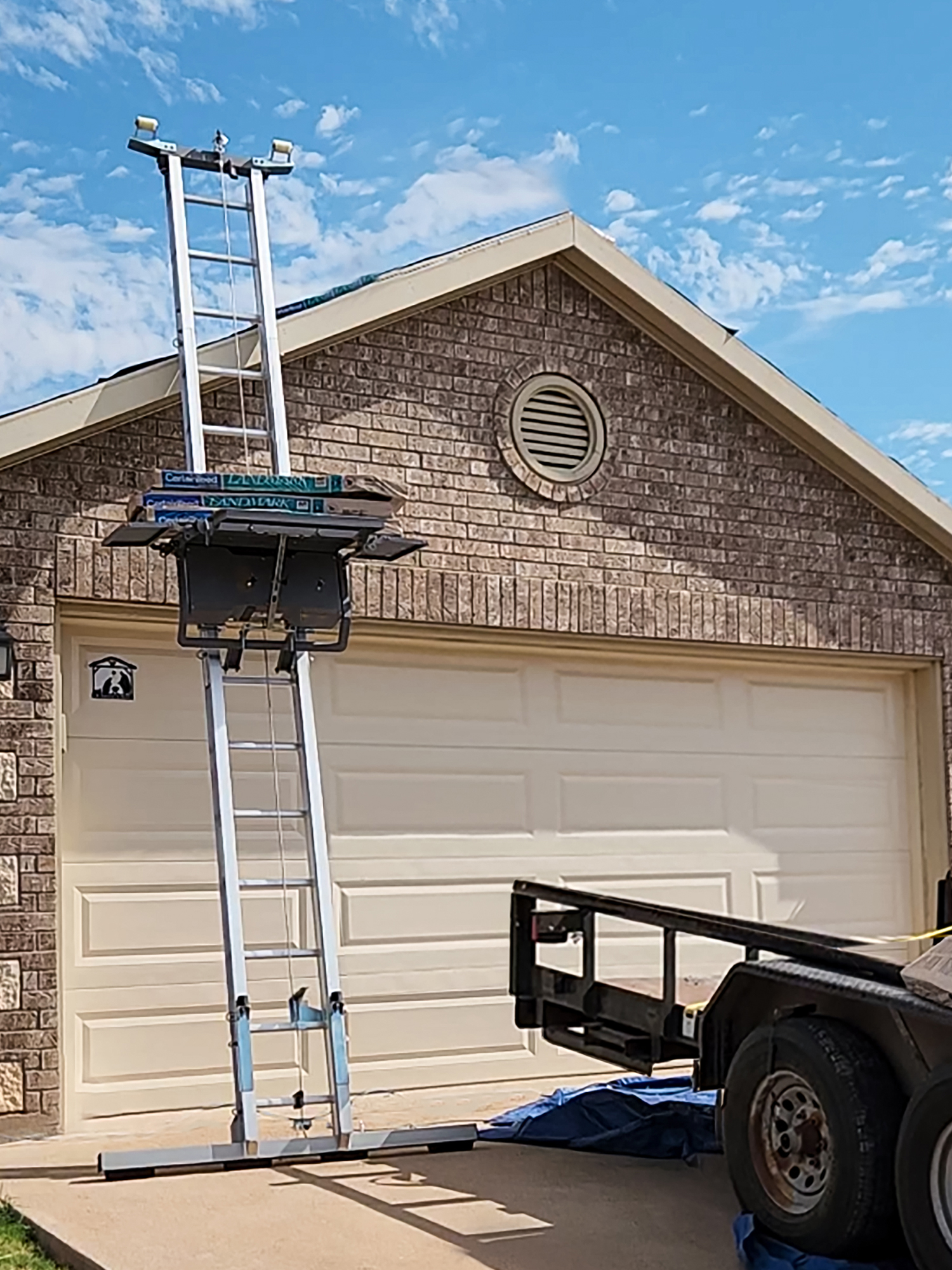

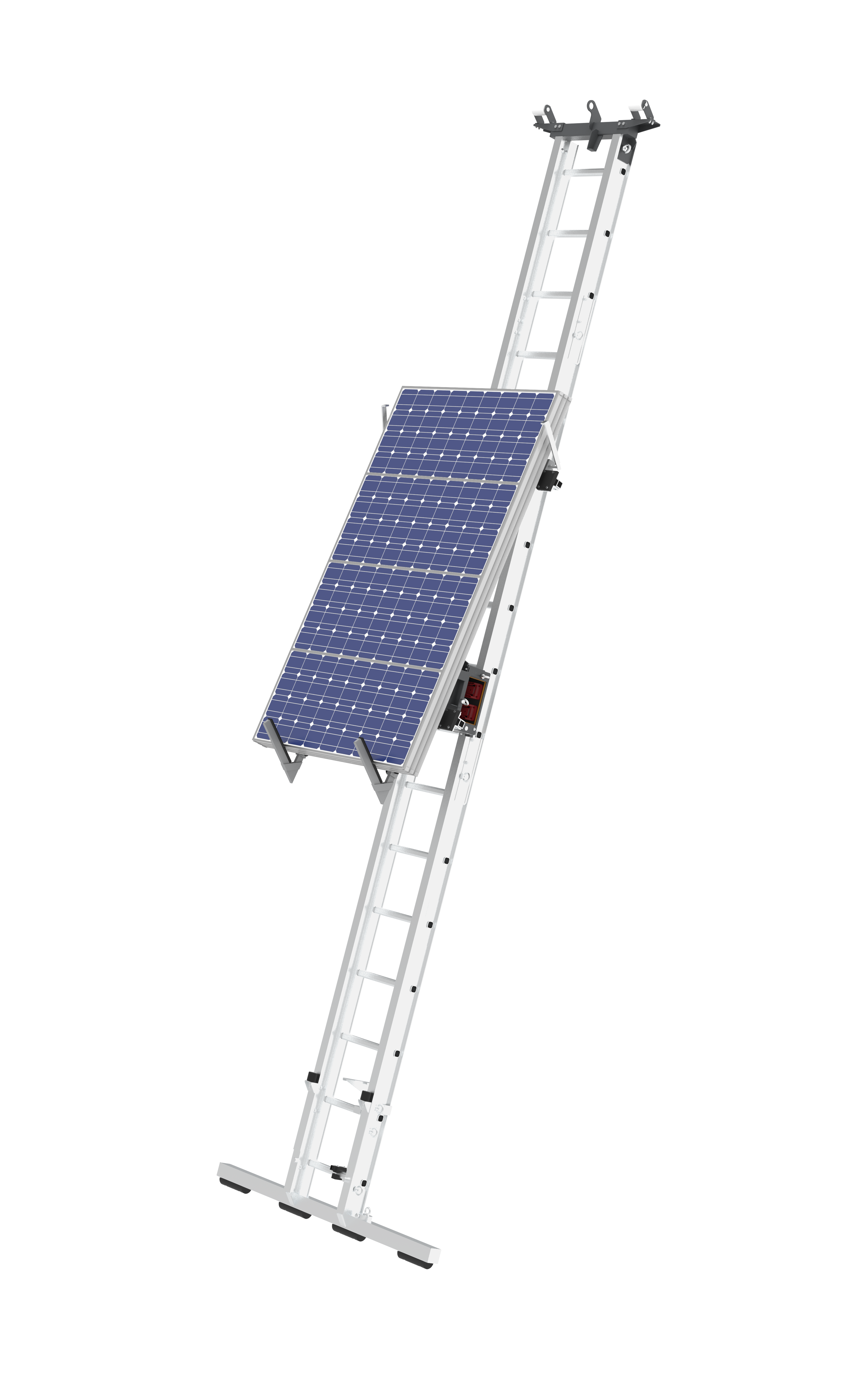

Specifications of the battery model

Model MH04L120
Power supply 550 W
Battery voltage 2 pcs * 18 V/5 Ah or 20 V/8 Ah
Rated load 120 kg (265 lbs)
Max. lifting height 10 m (33 ft)
Lifting speed 15m/min (49 ft/min)
Wire rope diameter 5 mm (1/5 inch), Stainless Steel
Waterproof IP 54
Over load detection Current overload
