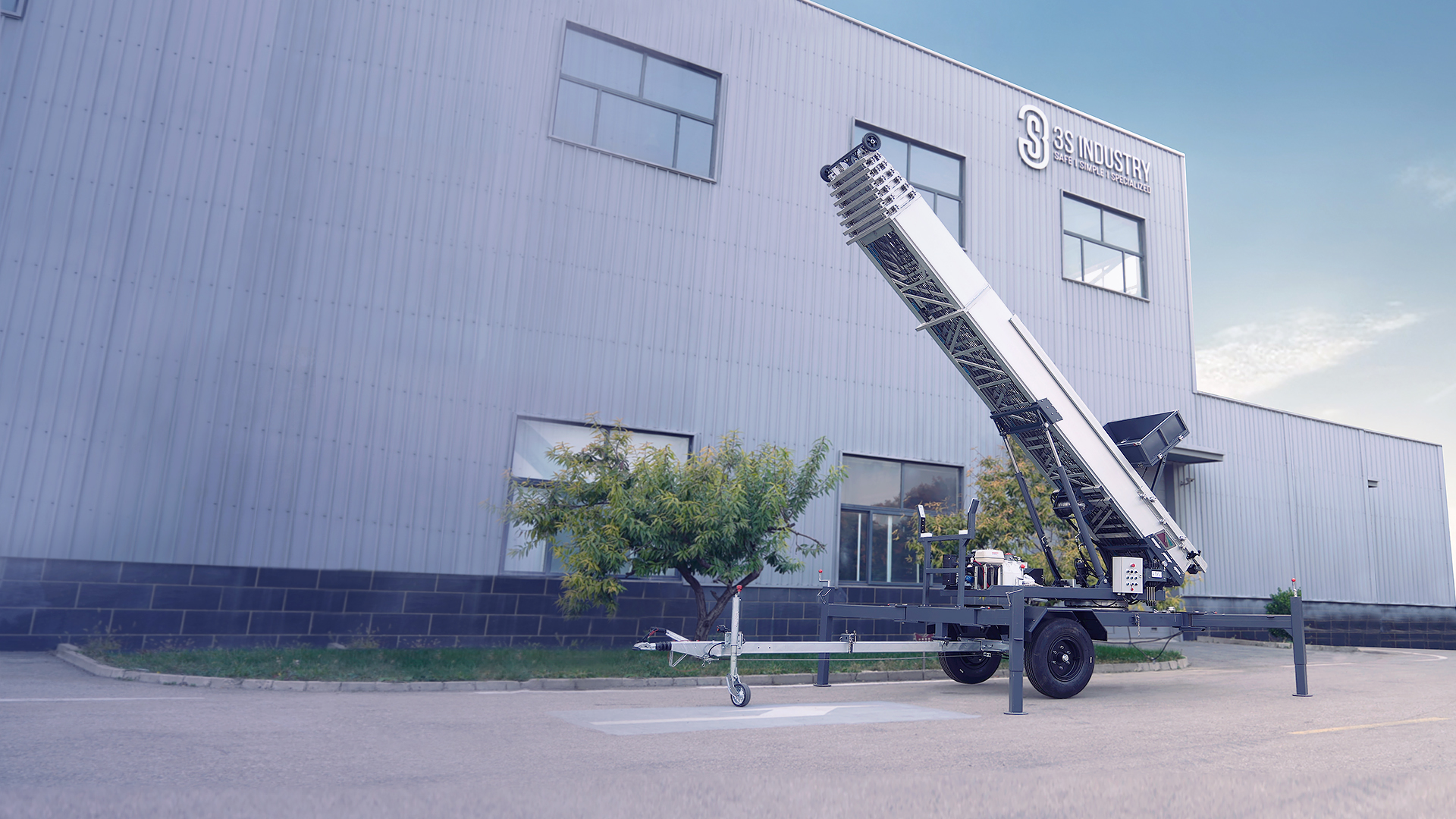

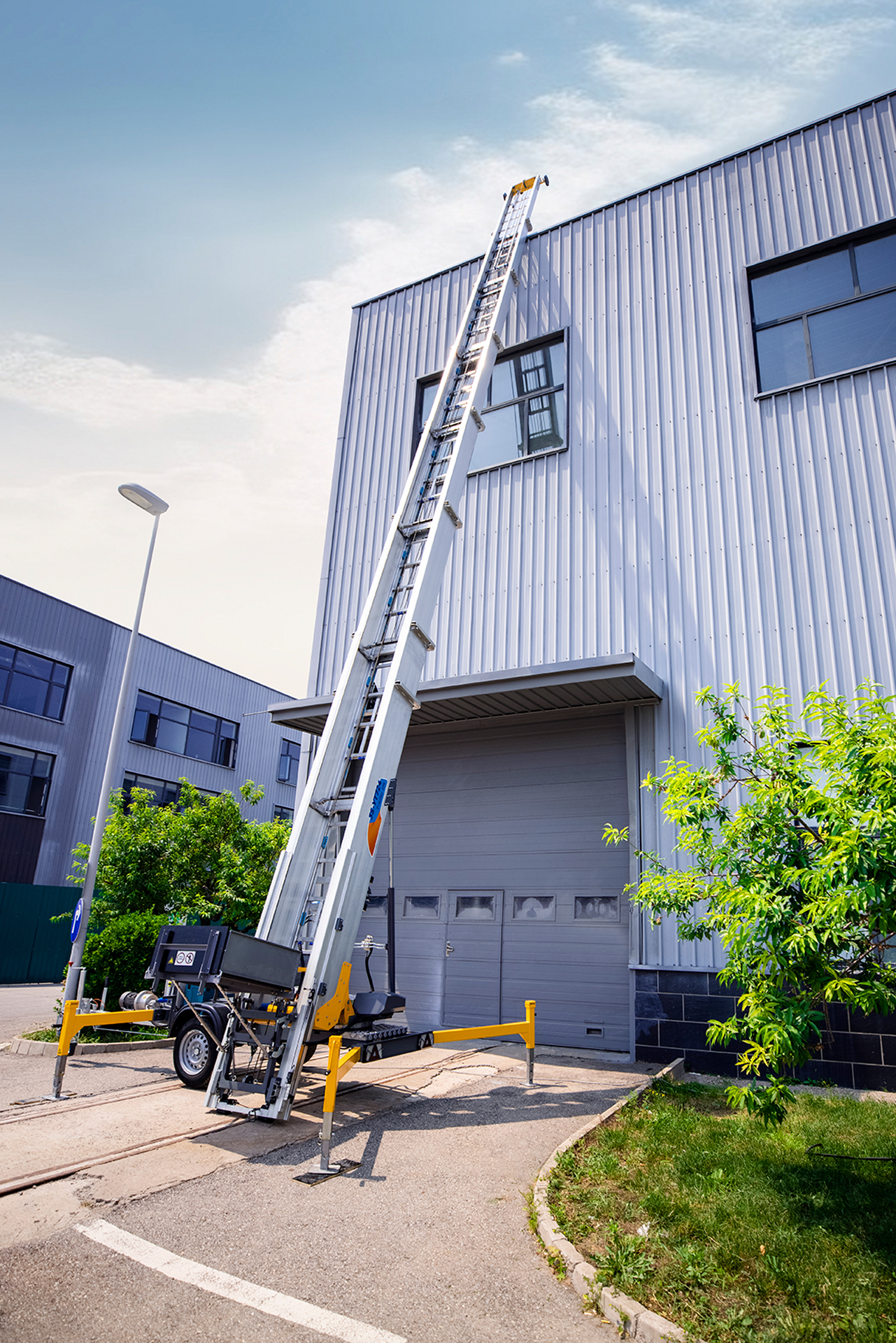

TRAILER LIFT

Lifting in an Efficient, Flexible and Convenient manner

Trailer Lifts are high-altitude material hoisting equipment that can be used in a variety of scenarios, including construction, house repair, furniture and solar panel handling. They have features of simple operation, convenient transfer, and quick and efficient operation, which greatly improves the efficiency of material handling.

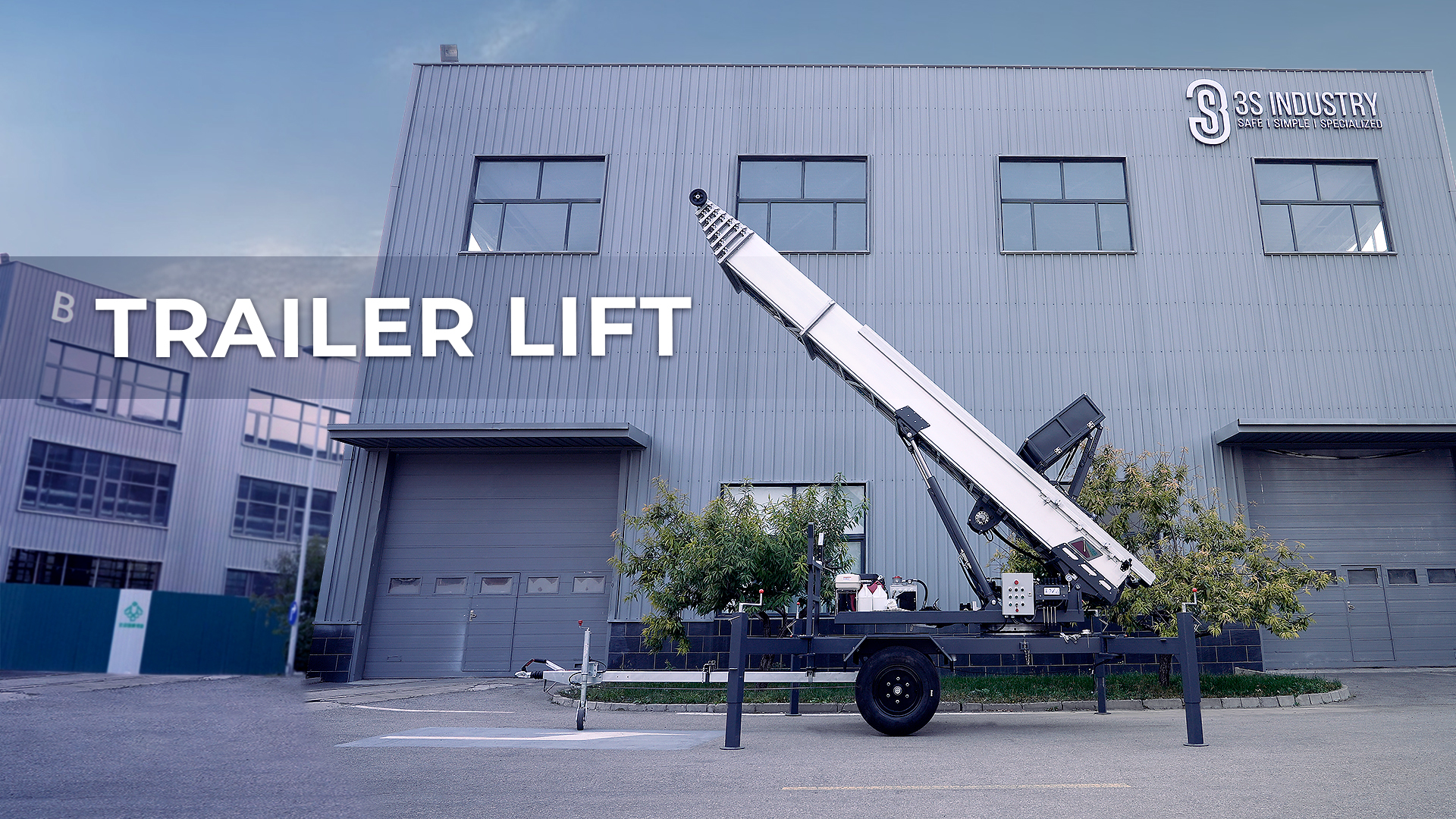

Videos

Product Advantages

●     Maximum load capacity of 400 kg
●     Maximum lifting height of 36 m
●     360° full-angle rotation
●     Flexible multi-angle operation of the guide rail
●     Load carrying device fall protection function
●     Hydraulic system overflow protection
●     Equipped with a standard gasoline engine. Alternative dual-power options available (An AC power or a gasoline engine + AC power)

Product Details

Turntable

Mounted on the chassis by means of a slewing bearing, the turntable is capable of rotating the guide rail 360°.

Luffing Cylinder

Hinged between the guide rail and the turntable, the cylinders extend or retract, which enable the guide rail to adjust pitch angle.

Guide Rail Members

Eight-section aluminum alloy guide rail, layered and nested, extended due to the extension of steel wire ropes.

Carriage

Slides up and down along the guide rail under the suspension of a steel wire rope.

Load Carrying Device

Different forms of load carrying devices available to accommodate to different materials.

Electrical Control System

Equipped with safety devices and provides control of the system.

Gasoline Engine (Electric motor)

Drive via electric motor or HONDA petrol engine.

Hydraulic System

All key actions use hydraulic actuators.

Turntable

Mounted on the chassis by means of a slewing bearing, the turntable is capable of rotating the guide rail 360°.

Luffing Cylinder

Hinged between the guide rail and the turntable, the cylinders extend or retract, which enable the guide rail to adjust pitch angle.

Guide Rail Members

Eight-section aluminum alloy guide rail, layered and nested, extended due to the extension of steel wire ropes.

Carriage

Slides up and down along the guide rail under the suspension of a steel wire rope.

Load Carrying Device

Different forms of load carrying devices available to accommodate to different materials.

Electrical Control System

Equipped with safety devices and provides control of the system.

Gasoline Engine (Electric motor)

Drive via electric motor or HONDA petrol engine.

Hydraulic System

All key actions use hydraulic actuators.

01 / 04

Key Features

  • Easy transport and transfer
    Easily connected to a towing vehicle, allowing convenient transport and transfer.
  • Convenient and fast deployment
    Integrated design and easy control, enabling it to accommodate to various applications in a time-efficient manner.
  • Suitable for multiple applications
    Widely utilized for construction, building maintenance, furniture and solar panel transport. Customizable to meet diversified applications.
  • Multi-mode control
    Controlled at either the electrical control cabinet or remote control. The hoisting is stable thanks to soft and smooth start and stop of the hoist.
  • Safe and reliable
    Safety and reliability assured thanks to features such as broken rope device, position monitoring, overspeed safety device, tilt prevention device.

SPECIFICATIONS

3S-YT518

Model 3S-YT518
Max. travel speed 90 km/h
Rated load 250 kg
Max. rail length 18 m
Max. operating speed (up/down) 24/48 m/min
Dead weight 0.75 t
Power supply Electric motor
Engine power 230V 2.6kW
Control voltage DC 24V
Chassis dimensions (L, W) 5300mm × 1400mm

3S-YT724

Model 3S-YT724
Max. travel speed 90 km/h
Rated load 250 kg
Max. rail length 24 m
Max. operating speed (up/down)
24/48 m/min
Dead weight 1.25 t
Power supply
Electric motor
Engine power 230V 2.6kW
Control voltage DC 24 V
Chassis dimensions (L, W) 5970mm × 1400mm

3S-YT621

Model 3S-YT621
Max. travel speed 90 km/h
Rated load 250 kg
Max. rail length 21 m
Max. operating speed (up/down) 24/48 m/min
Dead weight 0.75 t
Power supply Electric motor
Engine power 230V 2.6kW
Control voltage DC 24V
Chassis dimensions (L, W) 5300mm × 1400mm

3S-YT836

Model 3S-YT836
Max. travel speed 90 km/h
Rated load 400 kg
Max. rail length 36 m
Max. operating speed (up/down) 48/48 m/min
Dead weight 2.8 t
Power supply
Petrol engine
Engine power 13kW
Control voltage DC 12 V
Chassis dimensions (L, W) 7400mm x 1800mm
