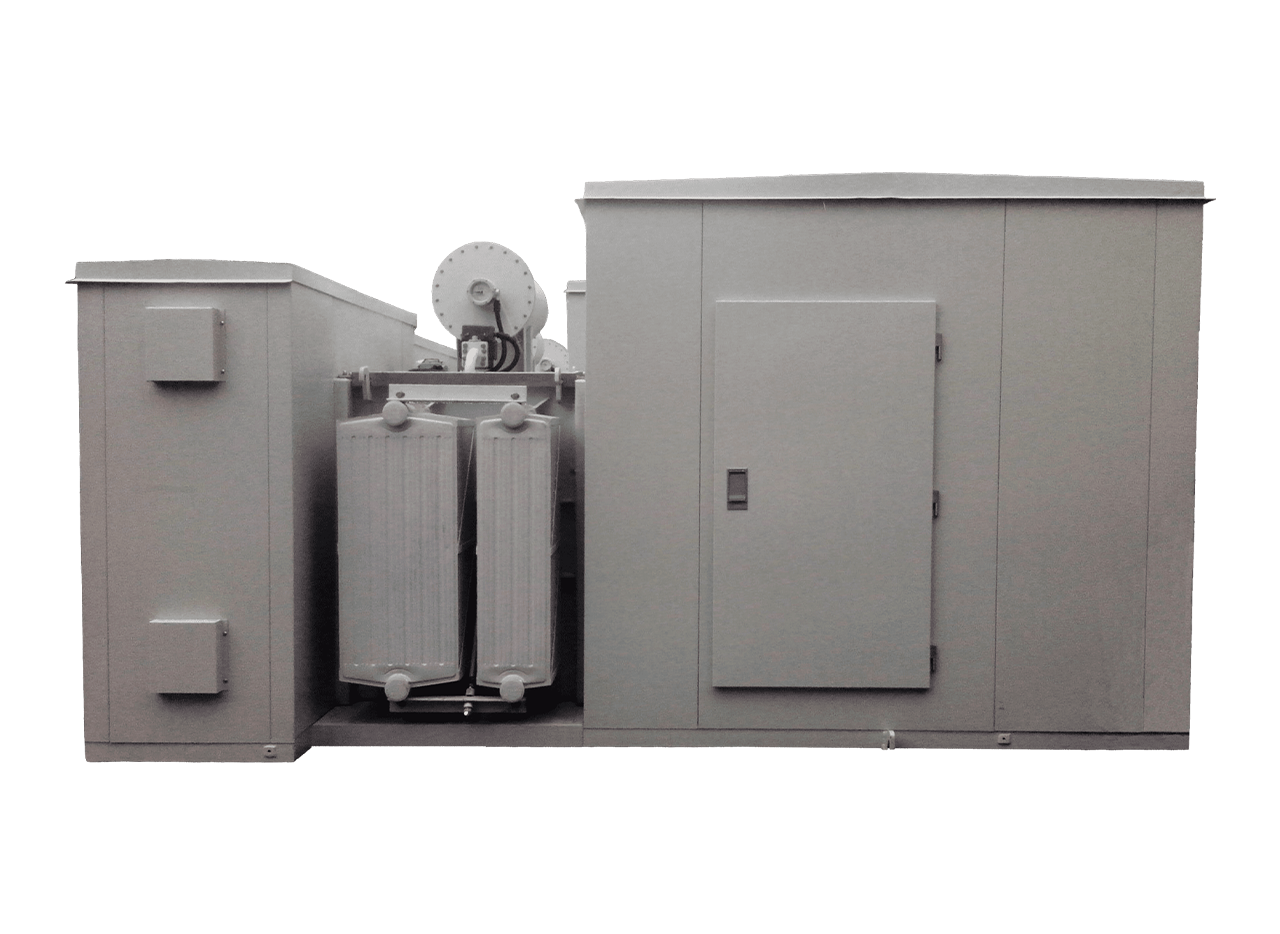

Prefabricated package substation (new energy)

Features

  • Compact structure, minimal footprint
  • High structural strength and strong environmental adaptability
  • Safe and reliable operation
  • Easy maintenance

Normal operating condition

  • Altitude: ≤ 1000 m
  • Ambient temperature:
    Maximum air temperature: +40℃
    Maximum monthly average air temperature: +30℃
    Maximum annual average air temperature: +20℃
    Minimum air temperature: -25℃
  • Relative humidity: ≤ 95% (25℃)
  • Power supply requirements: The voltage wave shape closely approximates a sinusoidal wave, and the three-phase voltages remain basically symmetrical.
  • Installation location: outdoor

*Note: Transformers for use under special conditions can be provided according to order requirements.
