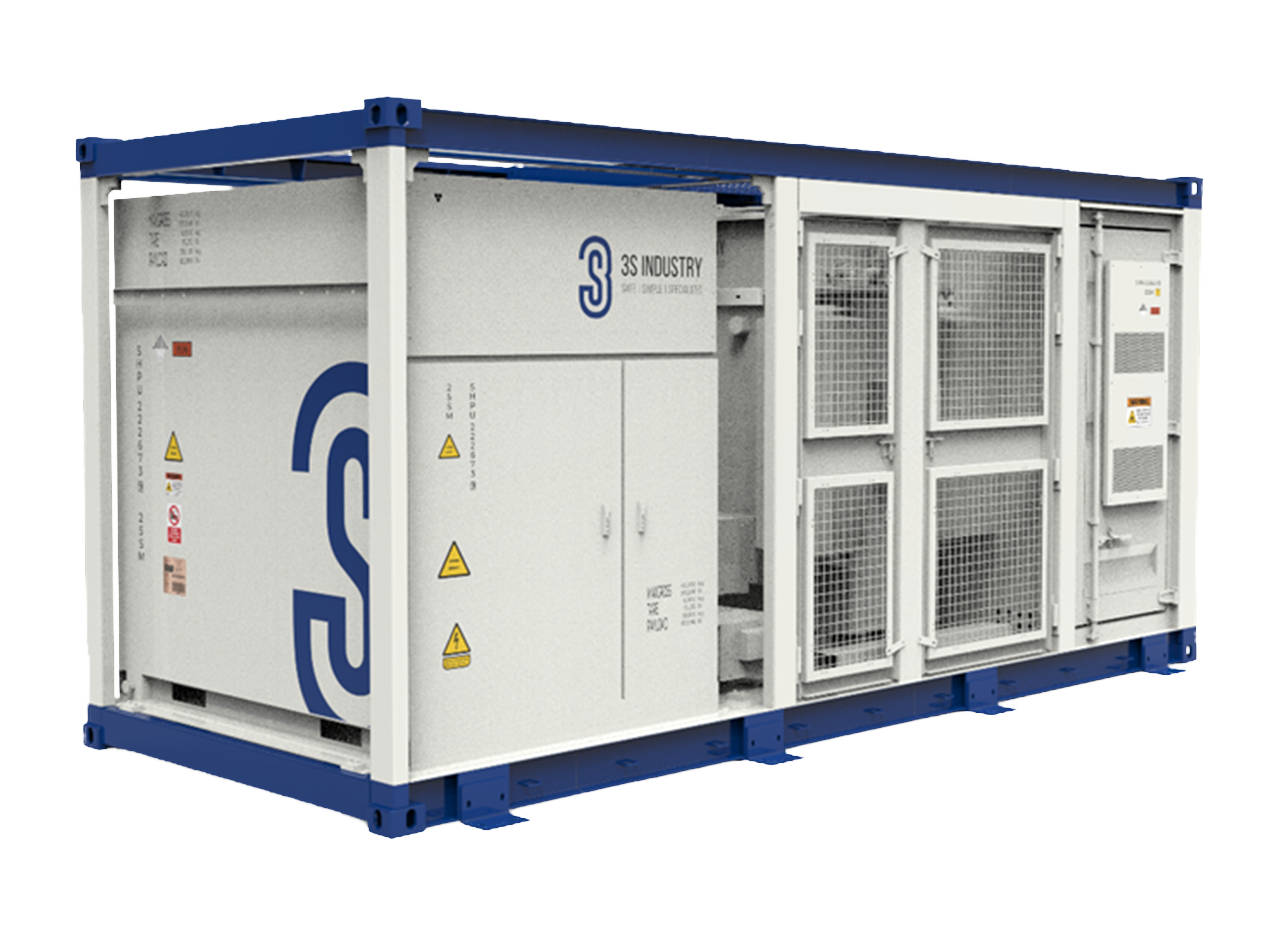

PCS middle voltage station

Flexible Configuration

  • Integrated inverter and transformer, compact design
  • Saves space, easily installation.
  • PCS modular design, compatible with 680Ah+ cells

High Efficiency & Stability

  • 1500V wide-range DC voltage
  • All-liquid cooling design, wide operating temperature
  • High protection level design

Extensive Use

  • Grid-Forming, PQ/VF/VSG, black start, etc.
  • Support constant power& current & voltage

Safety & Compatibility

  • LVRT and HVRT
  • UL, CE, multi-country grid-connected performance certification
  • Fast power response (<20ms)

*Note: This is a standard case drawing, and individual items will be adjusted according to customer requirements.
