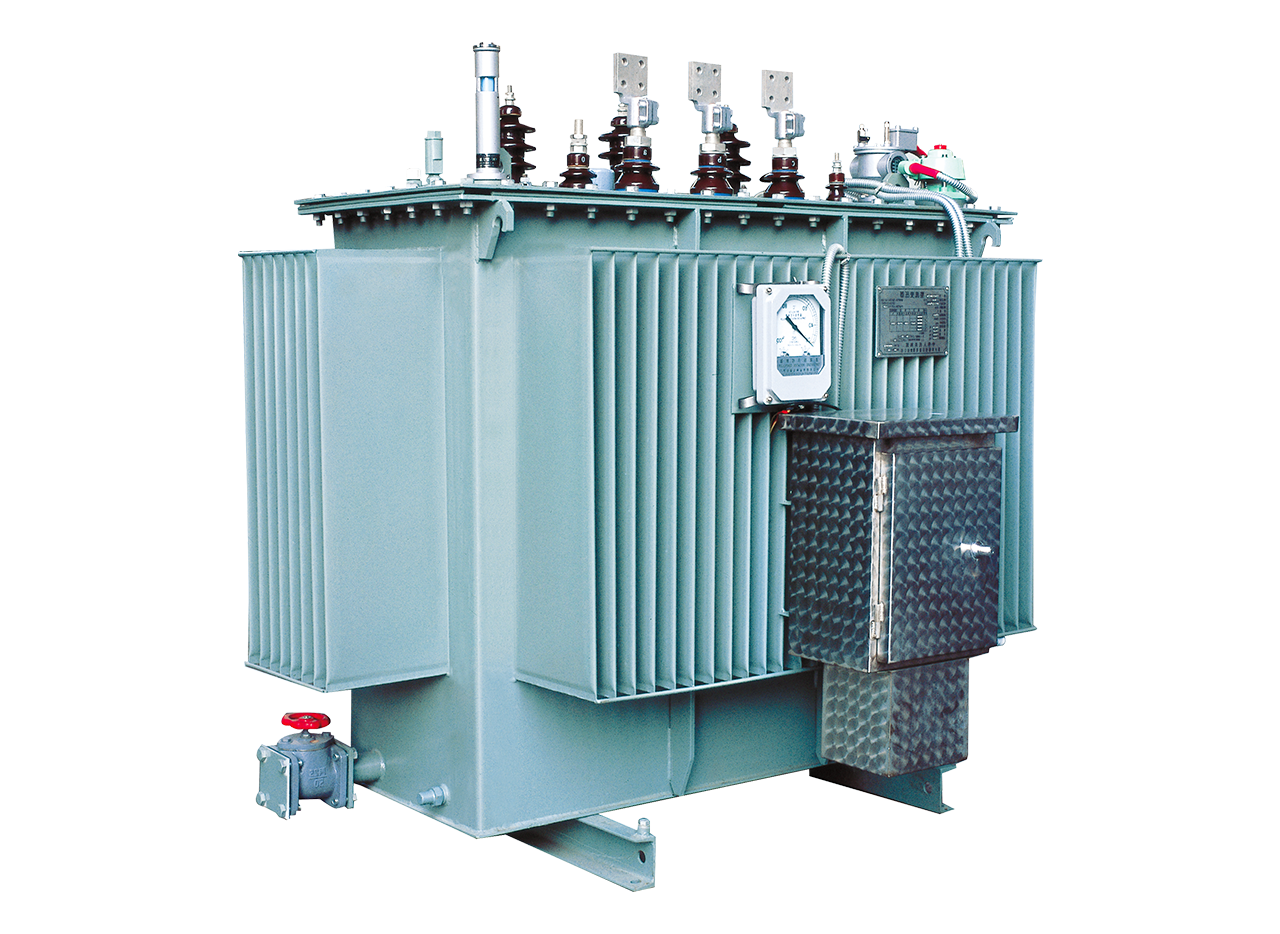

Distribution transformer

Features

  • High efficiency and energy saving
  • Excellent short-circuit resistance performance
  • Excellent overload capacity
  • Low operating noise
  • Convenient installation
  • Low operating cost

Normal operating condition

  • Altitude: ≤ 1000 m
  • Ambient temperature:
    Maximum air temperature: +40℃
    Maximum monthly average air temperature: +30℃
    Maximum annual average air temperature: +20℃
    Minimum air temperature: -25℃
  • Relative humidity: ≤ 90% (25℃), no condensation or icing during operation
  • Power supply requirements: The output wave shape closely approximates a sinusoidal wave, and the three-phase voltages remain basically symmetrical.
  • Installation location: indoor or outdoor

*Note: Transformers for use under special conditions can be provided according to order requirements.
