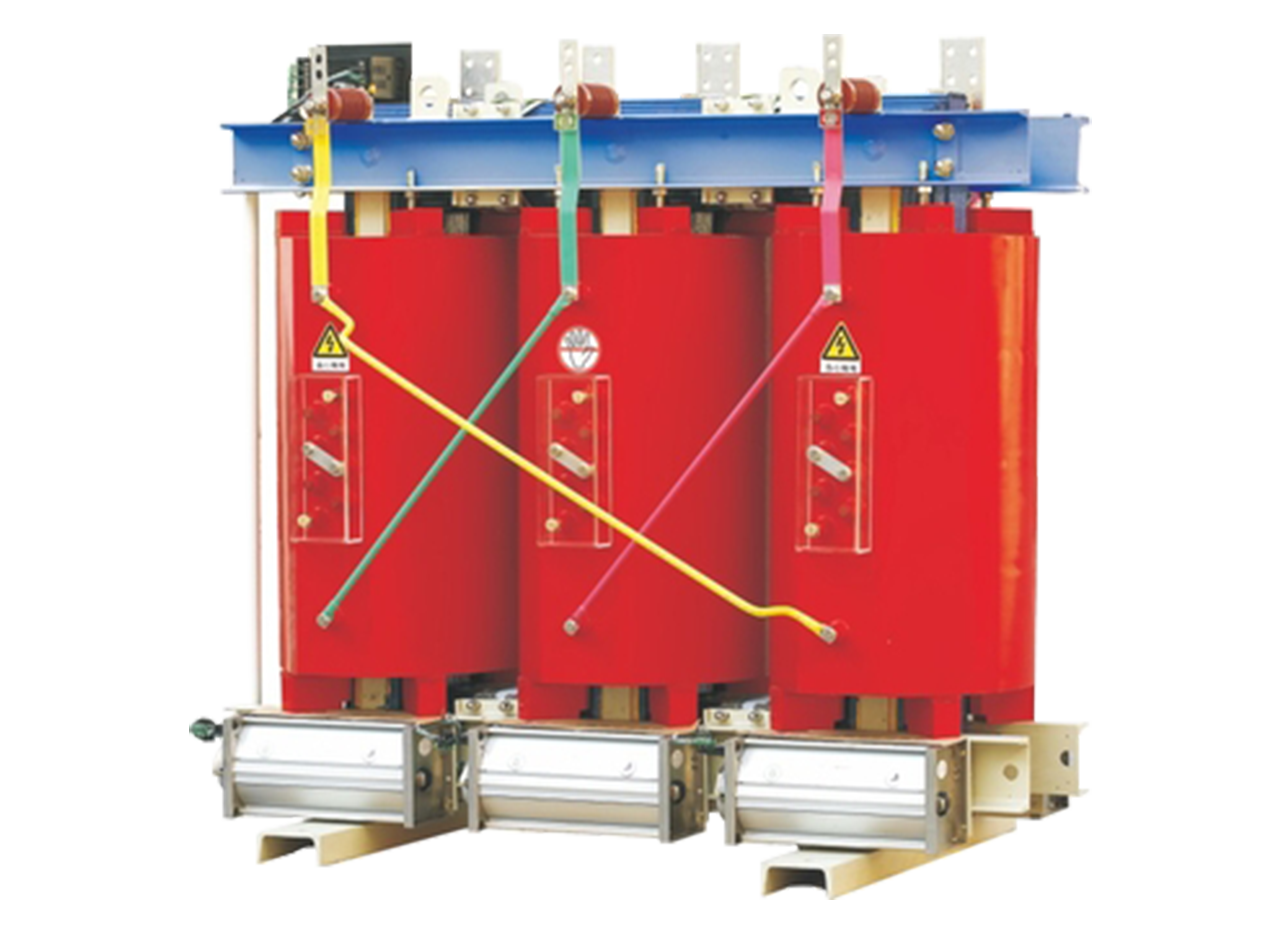

35 kV Dry-type transformer

Features

  • Excellent fireproof performance
  • High efficiency, low noise, and strong overload capacity
  • High reliability
  • Strong environmental adaptability
  • Simple operation and maintenance, with better overall cost

Normal operating condition

  • Altitude: ≤ 1000 m
  • Ambient temperature: ≤ +40℃
    Maximum monthly average air temperature: +30℃
    Maximum annual average air temperature: +20℃
    Minimum air temperature: -25℃
  • Relative humidity: ≤93% (25℃), no water droplets should appear on the coil surface
  • Power supply requirements: The output wave shape closely approximates a sinusoidal wave, and the three-phase voltages remain basically symmetrical.
  • Installation location: indoor or outdoor

*Note: Transformers for use under special conditions can be provided according to order requirements.
