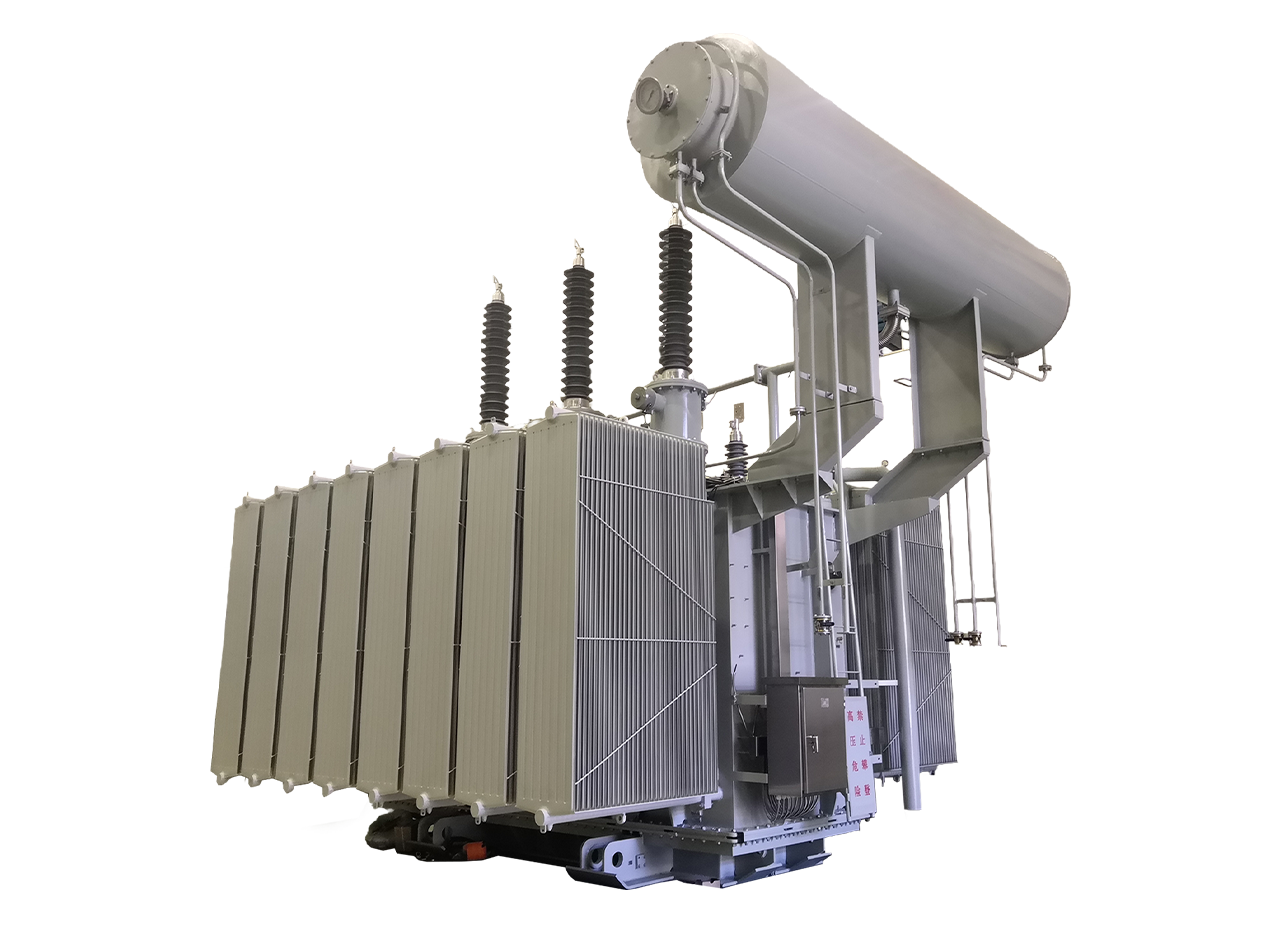

110 kV Oil-immersed power transformer

Features

  • Excellent temperature rise control
  • Low partial discharge
  • Strong ability to withstand short-circuit
  • Low loss, high energy efficiency

Normal operating condition

  • Altitude: ≤ 1000 m
  • Ambient temperature:
    Maximum air temperature: +40℃
    Maximum monthly average air temperature: +30℃
    Maximum annual average air temperature: +20℃
    Minimum air temperature: -25℃
  • Relative humidity: ≤ 90% (25℃), no condensation or icing during operation
  • Power supply requirements: The output wave shape closely approximates a sinusoidal wave, and the three-phase voltages remain basically symmetrical.
  • Installation location: indoor or outdoor

*Note: Transformers for use under special conditions can be provided according to order requirements.
