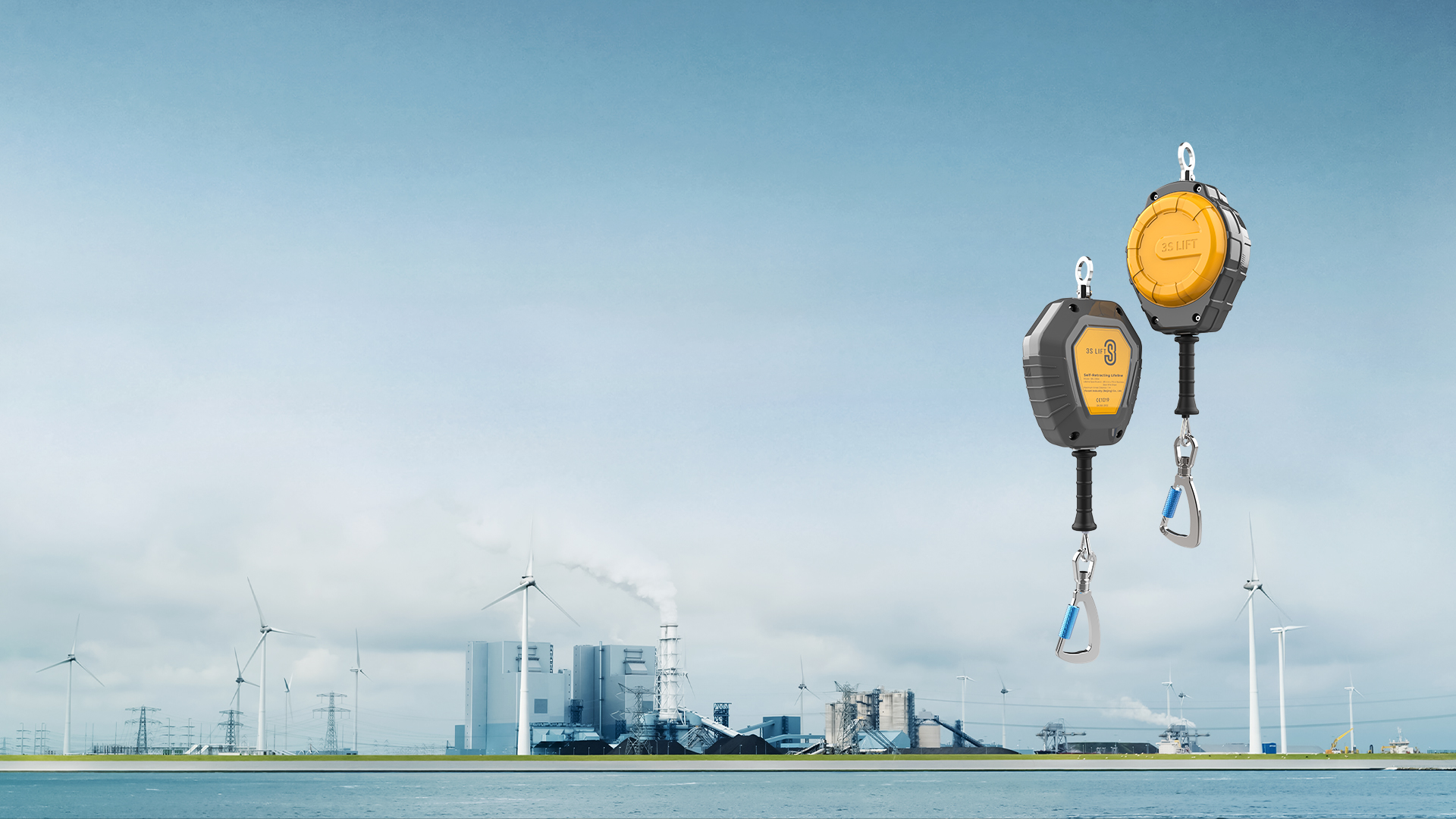

Self-Retracting Lifeline

Fall Protection For Safety And Free Movement

The Self-Retracting Lifeline features a high-strength, impact-resistant thermoplastic casing, offering lightweight and durable performance for enhanced convenience and comfort to users.

Self-Retracting Lifeline

Self-Retracting
The self-retracting design allows the lifeline to be extended and retracted, always keeping it taut. This provides freedom of movement without compromising safety.

Self-Locking
The self-locking fall arrest mechanism engages instantly, should a fall occur.

Durable Design
The product’s durable design features anti-corrosive protection to avoid damage from the environment.

Simple Installation and Disassembly
The reliable, self-locking lifeline is easy to install, use and disassemble.

No Maintenance from User
The lifeline is thoughtfully designed to require no maintenance from the user.

Extended Serviceable Life with Minimal Maintenance Costs
The 3S Protection Self-Retracting Lifeline offers an extended serviceable life with minimal maintenance costs.

Product Details

Stainless Steel Ring

Riveted assembly anti-loosening

High-Strength Lightweight ABS Shell

Ensuring product reliability in harsh environments

Aluminum Alloy Rope Wheel

Corrosion-resistant, ensuring reliable performance even in harsh environments

Ergonomic Rubber Handle

Resistant to aging, ensuring long-lasting durability

Stainless Steel Wire Rope

Sturdy and corrosion-resistant

Aviation-Grade Aluminum Alloy Rotatable Hook

AA7075 aluminum alloy;
High strength, corrosion resistance;
The hook can be rotated 360° to prevent the cable from twisting

Stainless Steel Ring

Riveted assembly anti-loosening

High-Strength Lightweight ABS Shell

Ensuring product reliability in harsh environments

Aluminum Alloy Rope Wheel

Corrosion-resistant, ensuring reliable performance even in harsh environments

Ergonomic Rubber Handle

Resistant to aging, ensuring long-lasting durability

Stainless Steel Wire Rope

Sturdy and corrosion-resistant

Aviation-Grade Aluminum Alloy Rotatable Hook

AA7075 aluminum alloy;
High strength, corrosion resistance;
The hook can be rotated 360° to prevent the cable from twisting

01 / 03

Key Features

  • High standard material selection for internal and external parts
  • Small in size, lightweight, and easy to use
  • Higher safety level, surpassing standard requirements in all aspects
  • Modular design for easy inspection and maintenance
  • Strong corrosion resistance
  • Clear and easy-to-understand labeling to avoid mistakes
  • Comprehensive after-sales network for worry-free usage

SPECIFICATIONS



SRL-06SA SRL-08SA
Maximum load 140kg(310 lbs) 140kg(310 lbs)
Working length 6.2m 6.2m
Weight 4.9kg 4.9kg
Corrosivity resistance C4-H C4-H
Locking distance ≤1m ≤1m
Max. dynamic force ＜4.4kN(ANSI Z359 B 8kN)
＜4.4kN(CSA Z259 8kN)
＜3.4kN(EN 360 6kN) 		6kN(ANSI Z359 B 8kN)
6kN(CSA Z259 8kN)
6kN(EN 360 6kN)
Average dynamic force ＜2.6kN(ANSI Z359 B 4kN) 4kN(ANSI Z359 B 4kN)
Breaking force >16kN >16kN
Standards ANSI Z359.14 B 、CSA Z259.2.2 、EN 360:2002、
GB24544-2009、 OSHA 1926.502 		ANSI Z359.14 B 、CSA Z259.2.2 、EN 360:2002、
GB24544-2009、OSHA 1926.502
