Evacuation And Rescue Device

Uniform speed slow down, safe and reliable

The Evacuation And Rescue Device is an emergency high-altitude descent and rescue escape device, which can be applied to high-altitude escape, rescue and training exercises. The operator descends from a higher position along the rope to a safe position at a constant speed through the escape bag, and also carries out active and passive rescue for the climber according to the instructions.

Automatic Descent and Assisted Rescue

The Evacuation and Rescue Device is an essential safety device when working at height. In cases where regular descent via the wind turbine tower’s ladder or lift is impossible, the Evacuation and Rescue Device provides emergency descent and assisted rescue. With its bi-directional design, it enables the fully automatic, controlled evacuation of up to two people simultaneously. The dual-brake mechanism with active heat dissipation ensures reliable performance, even when descending heavy loads from great heights.

Product Details

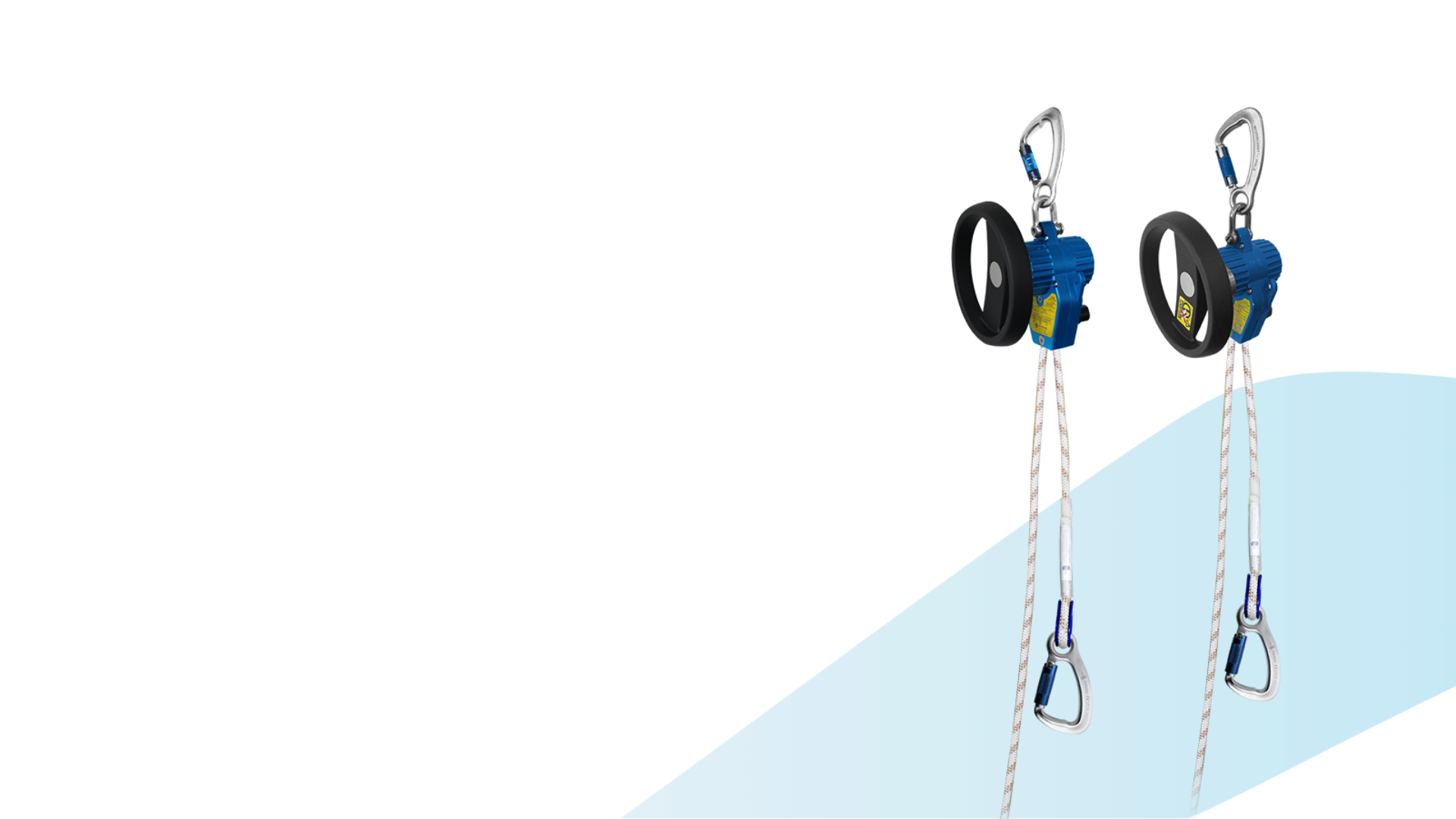

SOSAF-2R

Rescue & Recovery Model

With its integrated spoke handwheel, the Sosaf-2R model can be used for hoisting.

Self-Cooling Double Brake

The dual-brake mechanism with active heat dissipation provides stable descent at uniform speed. Even heavy loads can be abseiled from tall towers, enabling simultaneous two-person evacuation.

Bi-Directional Design

The bi-directional design allows for the uninterrupted descent or rescue of several people. Both ends of the rope can be used for descent, enabling continuous abseiling. This allows for quicker rescue.

High-Performance Rope

Designed for application on- and offshore, the highly robust kernmantle rope is resistant to wear, fire, saltwater spray, and high and low temperatures.

Customizable Rope

The rope length can be customized based on usage requirements.

Rescue & Recovery Model

With its integrated spoke handwheel, the Sosaf-2R model can be used for hoisting.

Self-Cooling Double Brake

The dual-brake mechanism with active heat dissipation provides stable descent at uniform speed. Even heavy loads can be abseiled from tall towers, enabling simultaneous two-person evacuation.

Bi-Directional Design

The bi-directional design allows for the uninterrupted descent or rescue of several people. Both ends of the rope can be used for descent, enabling continuous abseiling. This allows for quicker rescue.

High-Performance Rope

Designed for application on- and offshore, the highly robust kernmantle rope is resistant to wear, fire, saltwater spray, and high and low temperatures.

Customizable Rope

The rope length can be customized based on usage requirements.

01 / 03

SOSAF-3R

Automatic Anti-Reversal Device

Adding an automatic anti-reversal device enables real-time braking during the rescue process, making the rescue efforts more efficient and labor-saving.

Automatic Anti-Reversal Device

Adding an automatic anti-reversal device enables real-time braking during the rescue process, making the rescue efforts more efficient and labor-saving.

01 / 01

SPECIFICATIONS

Evacuation And Rescue Device

Model Sosaf-2R Sosaf-2
Descending speed ~0.9 m/s ~0.9 m/s
Rope diameter 9.6 mm 9.6 mm
Temperature range -40°C – +60°C -40°C – +60°C
Device weight 2.5 kg (excl. rope) 1.9 kg (excl. rope)
Descent load 1 person: 150 kg, max. descent height: 500 m
2 persons: 250 kg, max. descent height: 250 m
2 persons: 282 kg, max. descent height: 150 m



Model Sosaf-2R Sosaf-2
Hoisting function Yes No
Certification ANSI/ASSE, CE, CU-TR
Static rope compliant
with standard
EN 1891 Type A
Connector compliant
with standard
EN 362; anchor point: EN 795
Evacuation And Rescue
Device compliant with standard
EN 341:2011/1A
EN 1496:2006/A
ANSI/ASSE Z359.4-2013
CSA/CAN Z259.2.3-12/1/A
