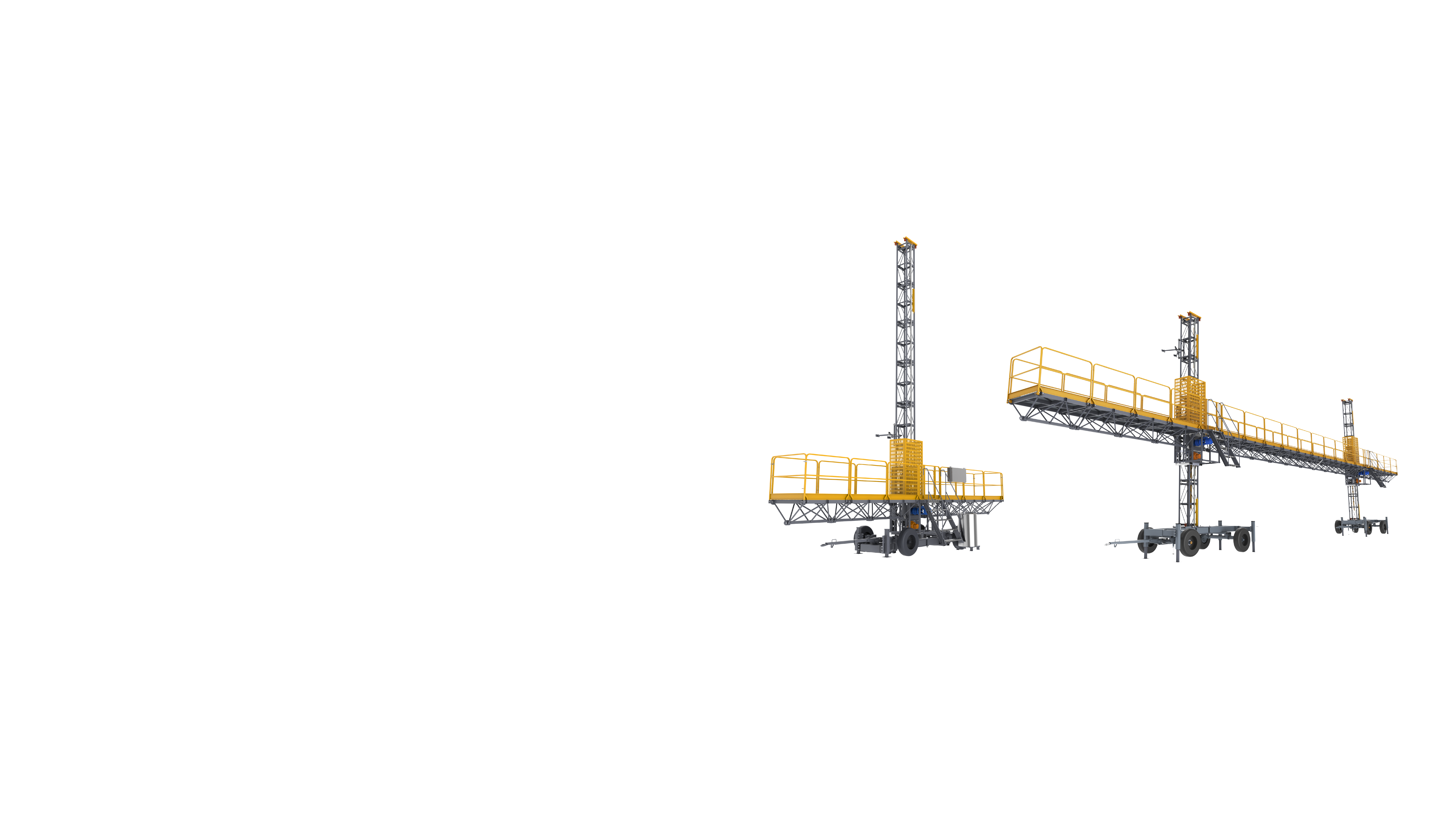

Mast Climber

The platform ascends and descends along the mast with precision, driven by the meshing gears and racks. Enjoying high strength metal structures, complete safety features, and stability, the product is suitable for various exterior wall contour and can be applied in the fields of construction, maintenance, and cleaning.

Mast Climber

Download brochure

Features

  • Mature technology with high safety factor
  • Single and twin mast & flexible platform dimensions
  • Simple design
  • Durable galvanized parts
  • Modular design with varied configurations

Advantages

  • Strict safety and quality standards
  • Adjustable length for various sites
  • Easy installation
  • Reliable performance over time
  • Easy maintenance

Benefits

  • Flexibly adapts to diverse projects
  • Reduce installation labor and time
  • Higher productivity
  • Extend product lifespan
  • Cost efficiency

SPECIFICATIONS



Model MC450-S MC450-T
Platform length (m) 2.8-10.2 6.2-30.2
Platform width (m) 1.2-2.4 1.2-2.4
Rated load (kg） 1000-2000 2000-4000
Speed (m/min） 7-12 7-12
Power supply 380V/50Hz 380V/50Hz
Max lifting height (m） 400 400



Model MC650-S MC650-T
Platform length (m) 3-12 6.6-32.2
Platform width (m) 1.5-2.7 1.5-2.7
Rated load (kg） 2000-3500 3500-5000
Speed (m/min） 7-12 7-12
Power supply 380V/50Hz 380V/50Hz
Max lifting height (m） 400 400

Product Details

Drive Unit

The gear motor propels the work platform to travel up or down along the mast. In the event of power loss, the manual descent mechanism allows the work platform to lower down to safety.

Overload Detection Device

When exceeding the rated load, the device activates an audible and visual alarm and disconnects the power supply.

Overspeed Safety Device

When reaching the actuating speed, the device operates, stopping the work platform motion and disconnecting the power supply.

Rack Detection Switch

To prevent the work platform from detaching the mast. When the switch is actuated, the power supply is disconnected, and may be reconnected by resetting the switch after manual descent.

Guiding System

To make sure that the platform travels in the designate path and in a safe and smooth manner.

Work Platform

Modular work platform, meeting diverse operational needs across various scenarios.

Platform Gate

The gate is positioned in the middle for easy access. Equipped with position switches, the platform is prevented from moving when the gate is open and operates normally when the gate is closed.

Towable Chassis

Solid tires, retractable outriggers for stable support, ensuring safe operations.

Drive Unit

The gear motor propels the work platform to travel up or down along the mast. In the event of power loss, the manual descent mechanism allows the work platform to lower down to safety.

Overload Detection Device

When exceeding the rated load, the device activates an audible and visual alarm and disconnects the power supply.

Overspeed Safety Device

When reaching the actuating speed, the device operates, stopping the work platform motion and disconnecting the power supply.

Rack Detection Switch

To prevent the work platform from detaching the mast. When the switch is actuated, the power supply is disconnected, and may be reconnected by resetting the switch after manual descent.

Guiding System

To make sure that the platform travels in the designate path and in a safe and smooth manner.

Work Platform

Modular work platform, meeting diverse operational needs across various scenarios.

Platform Gate

The gate is positioned in the middle for easy access. Equipped with position switches, the platform is prevented from moving when the gate is open and operates normally when the gate is closed.

Towable Chassis

Solid tires, retractable outriggers for stable support, ensuring safe operations.
