VERTICAL LADDER HOIST

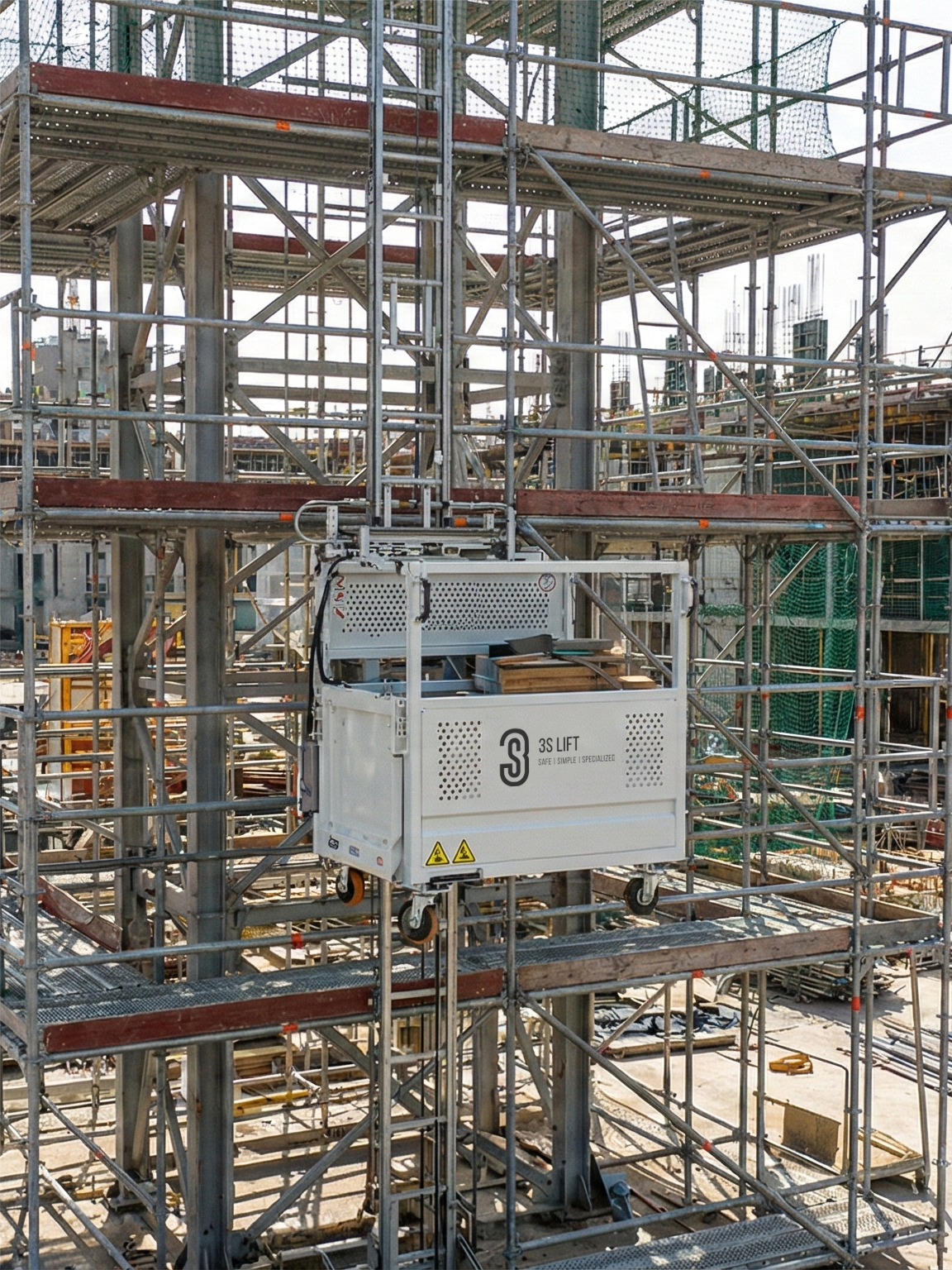

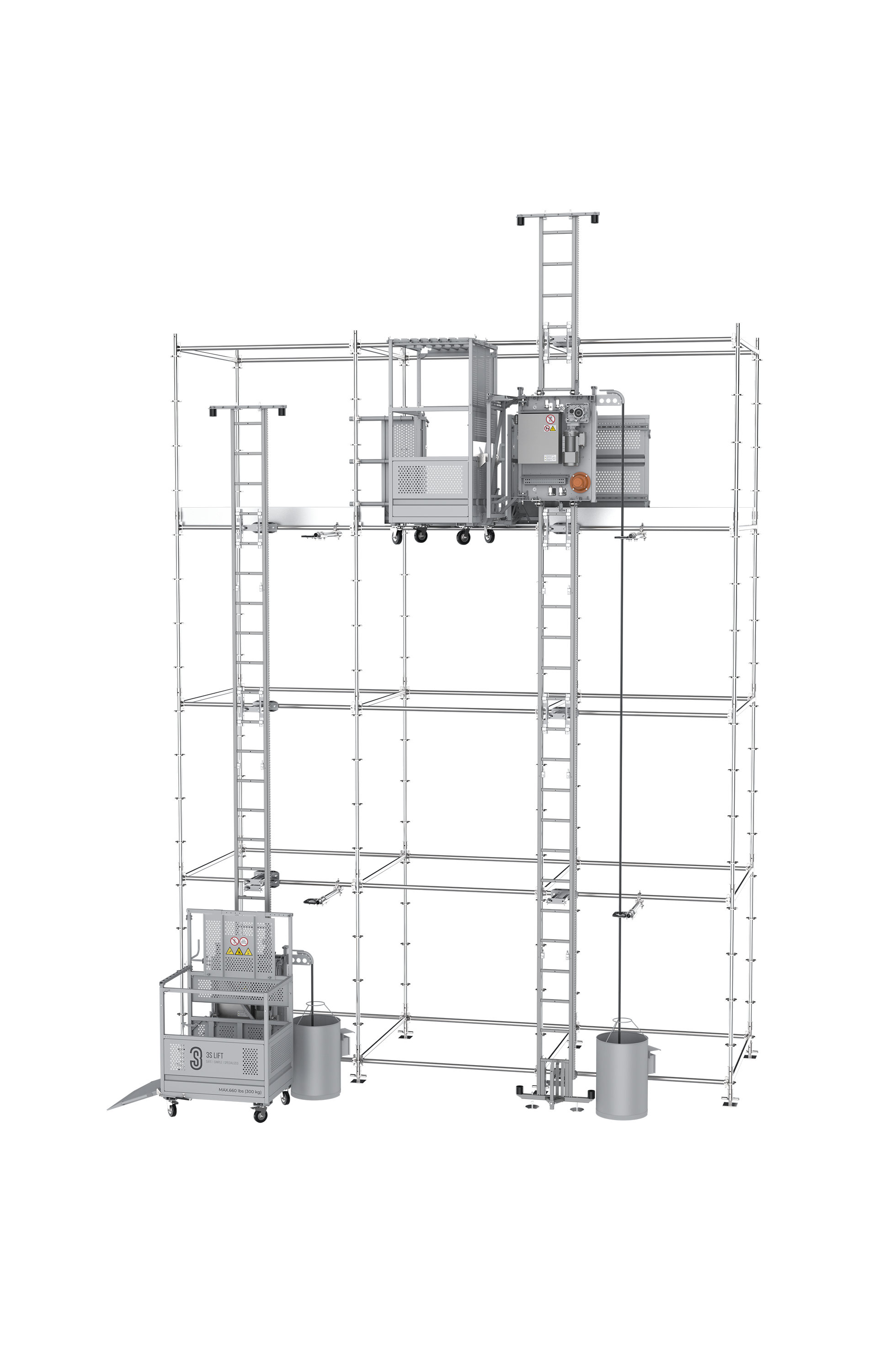

The VH01L300 Vertical Ladder Hoist utilizes 3S INDUSTRY’s signature rack and pinion technology to deliver industrial-grade lifting reliability in a compact footprint. Designed to integrate seamlessly with standard scaffolding systems, this hoist features a unique 90-degree swiveling cradle that allows materials to be loaded and unloaded safely onto the platform deck. With a rated load of 300kg and heights up to 50m, it serves as the logistical backbone for scaffolding erection and dismantling, ensuring continuous vertical flow without occupying the space required by large construction elevators.

Vertical Ladder Hoist

Download brochure

Features

  • Rack and pinion drive
  • 90-degree swivel cradle
  • Slim ladder profile
  • Frequency inverter control

Advantages

  • Positive gear engagement; no rope slip or stretching
  • Platform rotates inwards toward the scaffolding deck
  • Compact mast footprint
  • Regulates power output and motor speed

Benefits

  • Operational Stability: Smooth start/stop and consistent speed regardless of load
  • Safety & Ergonomics: Eliminates dangerous reaching over handrails
  • Site Accessibility: 40% reduction in footprint compared to standard hoists
  • Reduced Wear: Reduced current load prevents power spikes

SPECIFICATIONS



Model VH01L300
Drive Type Rack and Pinion
Max. Rated Load 300 kg
Max. Lifting Speed 20 m/min
Anti-fall Braking Distance ≤ 1.4 m
Max. Lifting Height 50 m / 164 ft



Platform Dimensions Before expansion: 880x1260x1400 mm;
After expansion: 880x1260x2090 mm
Single Rail Length/Weight 1.96 m / 24.5 kg
Motor Power 2.2 kW
Operating Voltage 230 V 50 Hz (16A Max Current)
Certification CE / EN 12158-1
