Products

Suspended Platform

Suspended platform features time-tested technology and an excellent safety margin for reliable high-altitude use. It has an uncomplicated structure, long-lasting components (lowering breakdown risks), and modular design for flexible configurations to fit diverse projects.

Suspended Platform

Download brochure
Features
  • Time-tested technology with an excellent safety margin
  • Uncomplicated structure
  • Long-lasting components
  • Modular construction with multiple configuration possibilities
Advantages
  • Rigorous safety and quality benchmarks
  • CE Certificate
  • Easy maintenance
  • Adjustable length to suit different work sites
Benefits
  • Versatile adaptation to different projects
  • Enhanced safety
  • Improved productivity
  • Reduce installation labor and time

Scenarios

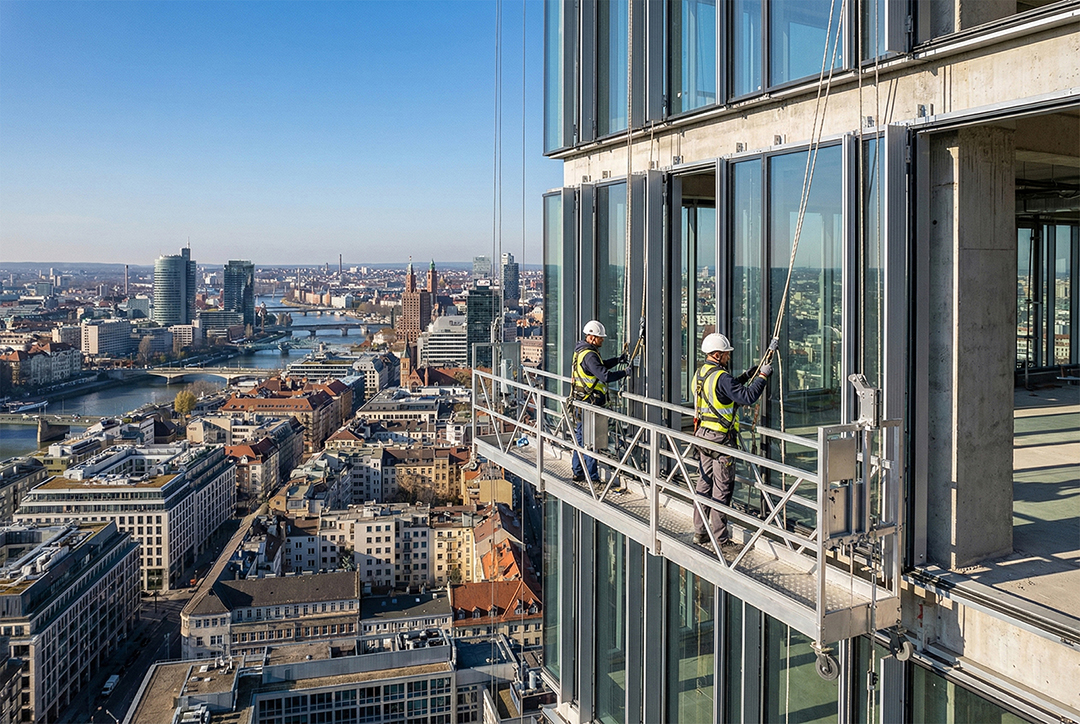

Facade Maintenance

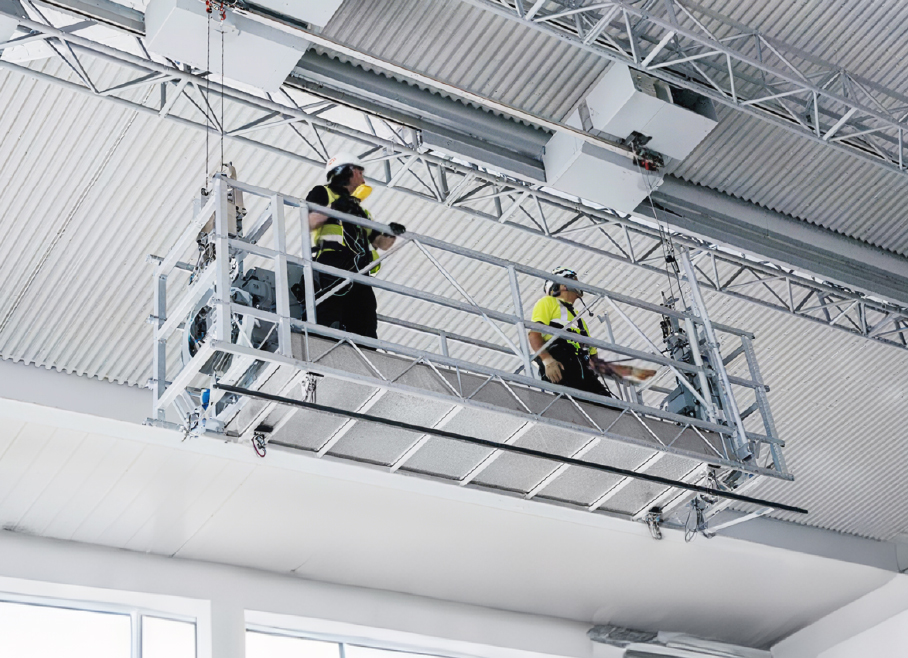

Facility Maintenance

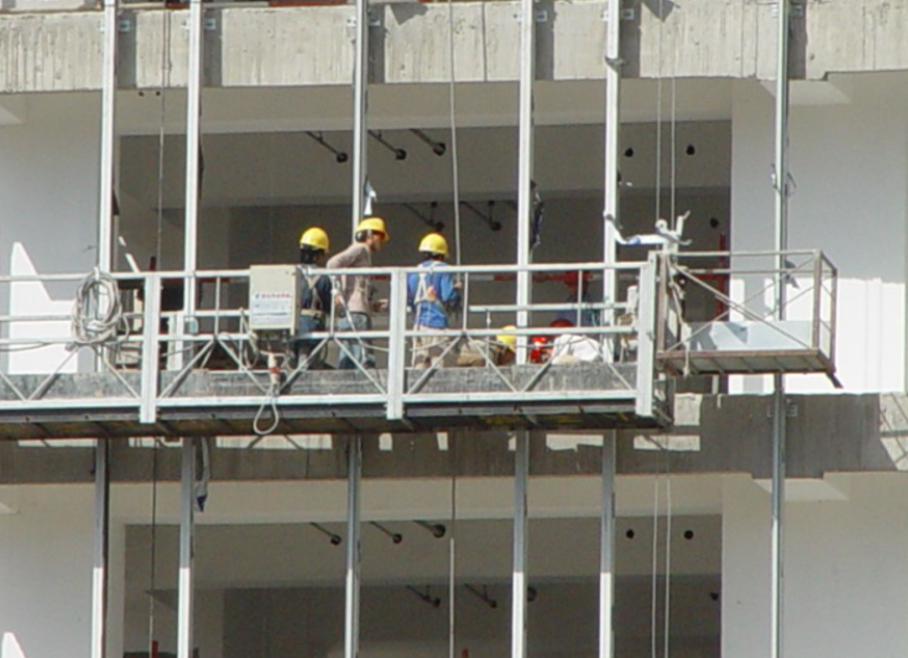

Building Construction

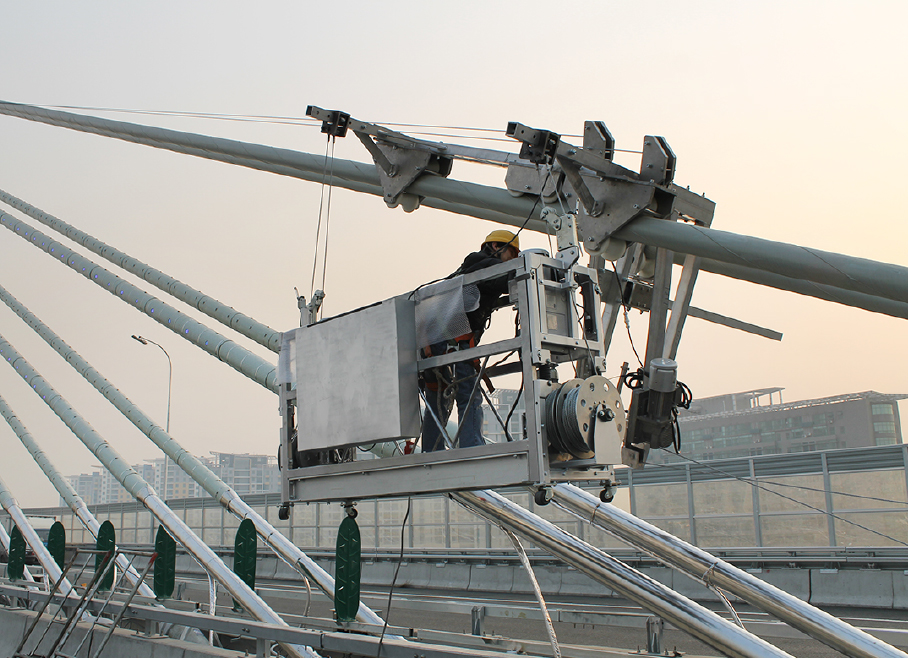

Bridge Construction
01/04

SPECIFICATIONS

Temporary Suspended Platform-XP Series

Category 3+2m / 3+3m / 2+3+2m / 3+3+3+3m
Rated load (kg) 540 – 980
Self-weight (kg) 350-540
Length (L stirrup max) 15 m
Inside width (m) 0.60 m
End stirrup max length (m) 12 m
Working load limit (kg/m) 140 kg/m

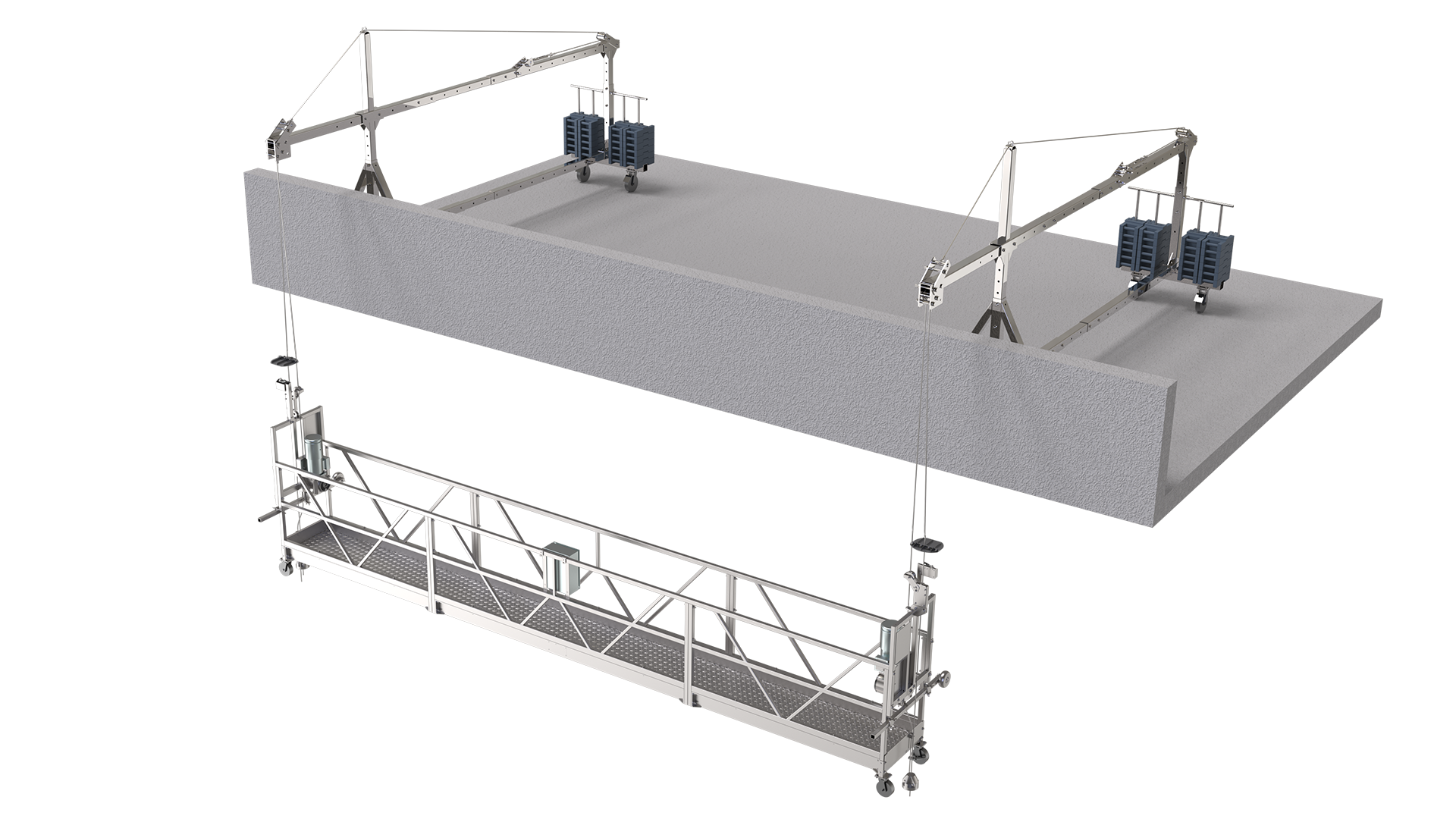

Product Details

Traction Hoist

It meets multiple international certifications. The platform is raised or lowered by using the friction between the speed reducer and the wire rope.

SafeLock

It features a tilt locking function with a tilt rope angle of 3-11° and an allowable impact force of 30kN.

Platform

Made of high-strength aluminum alloy, the platform is strong yet lightweight; it can transport materials, personnel, and tools.

Traction Hoist

It meets multiple international certifications. The platform is raised or lowered by using the friction between the speed reducer and the wire rope.

SafeLock

It features a tilt locking function with a tilt rope angle of 3-11° and an allowable impact force of 30kN.

Platform

Made of high-strength aluminum alloy, the platform is strong yet lightweight; it can transport materials, personnel, and tools.

01 / 02
