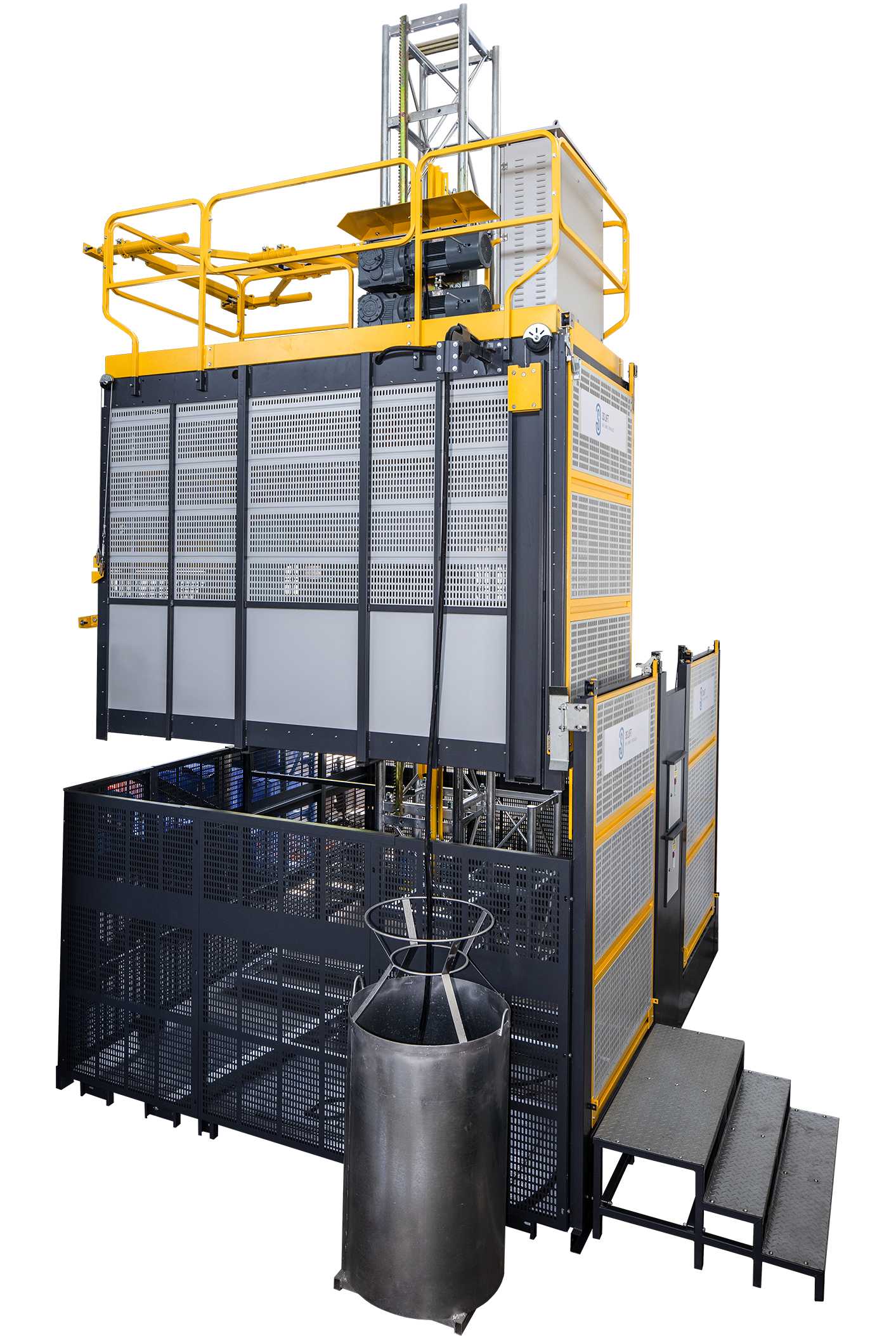

Construction Hoist

Products

Construction Hoist

Construction Hoist has single/twin cages, variable frequency control, and multiple door configurations. With rack & pinion tech, it’s reliable, high-quality, and handles harsh environments. It has high capacity, low TCO, high safety, and long lifespan.

Construction Hoist

FAB
Product Details
Specifications
Contact Us
Download brochure

Download brochure

Features

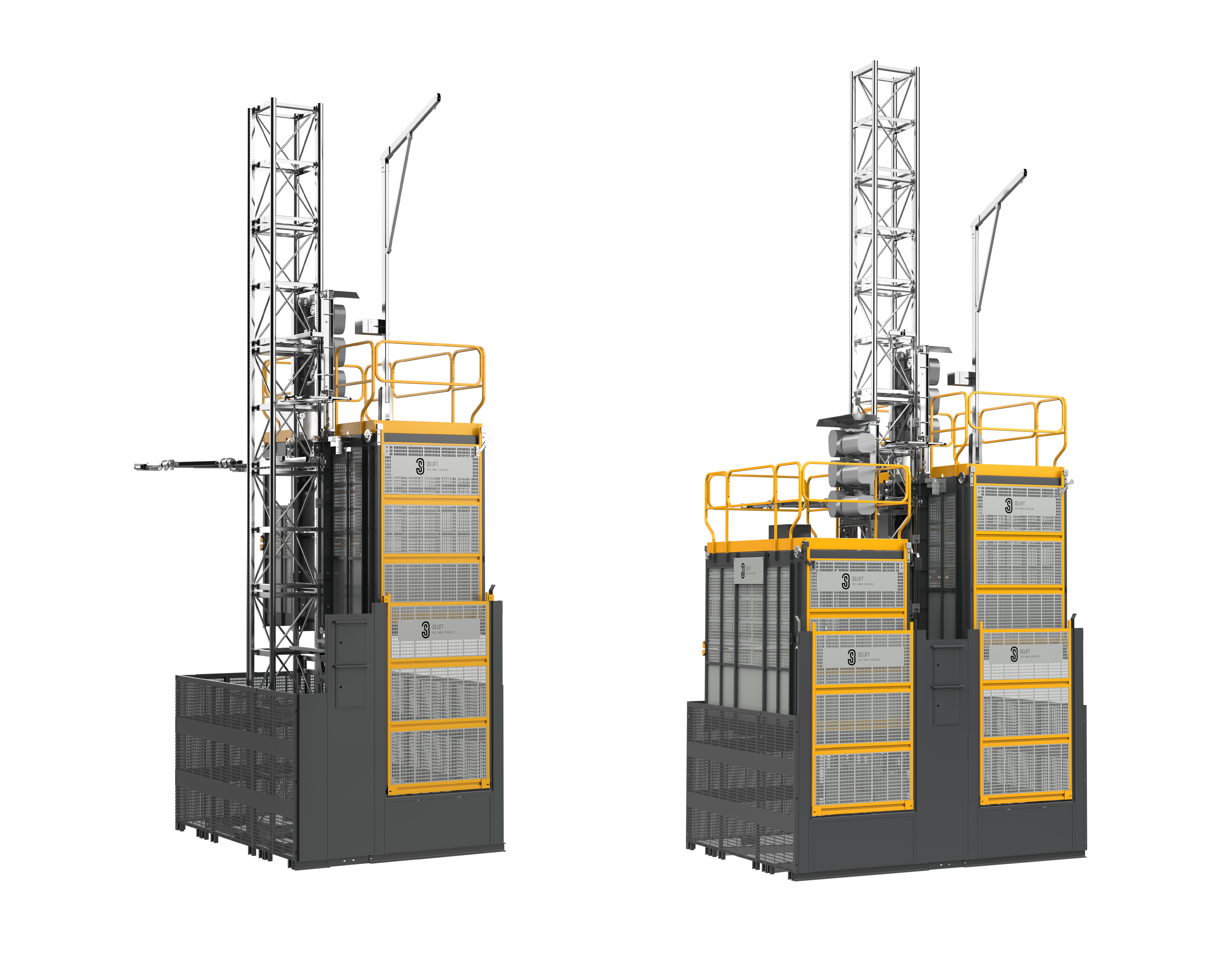

Single / twin cage
Variable frequency control
Multiple door configurations
Reliability & High quality
Renowned 3S rack & pinion technology

Advantages

Maximized carrying capacity
Smooth ride and comfort
Adapt to different site conditions
More uptime, Less downtime.
Can withstand the harshest of environments

Benefits

Lowers the total cost of ownership (TCO)
Safer, caring, capability
Improved material flow
Improved productivity
Extended product lifespan

Product Details

Safety Device

If the descending speed of the hoist exceeds the rated speed, the device will automatically lock and the hoist will stop immediately. The power to the hoist is cut off.

Tie-in

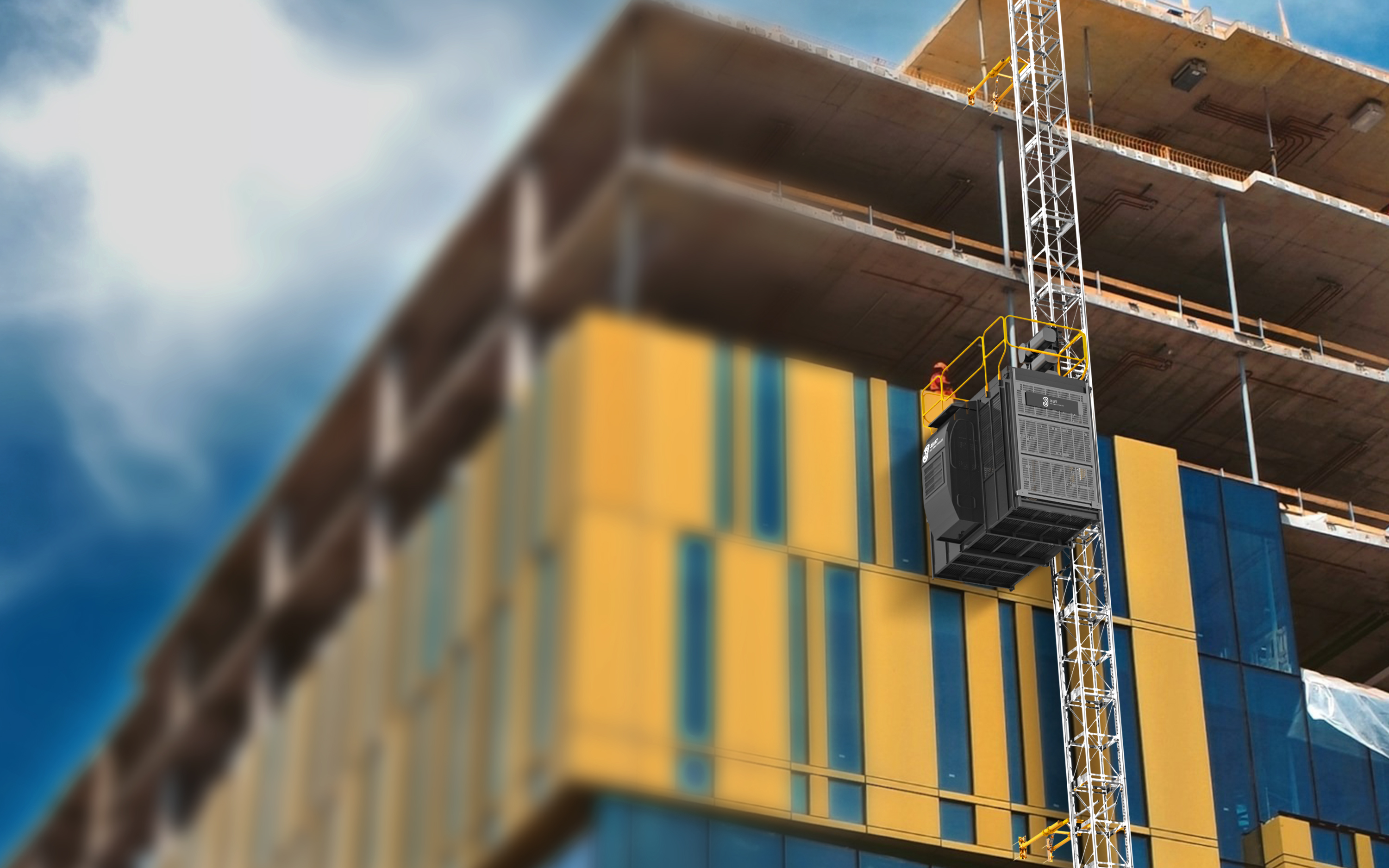

The tie-in is a key supporting component that anchors the hoist to the building structure, restrains tower sway, transfers lateral loads, and ensures safe and stable vertical lifting of the equipment.

Drive Unit

The gear motor of the construction hoist drives the pinion to move up and down along the rack. This allows the rollers to travel up and down the mast.

Mast Section

The mast section is a primary load-bearing structural component that forms the main body of the hoist, provides vertical guidance for lifting, can be extended by adding sections as needed, and supports the weight of both equipment and personnel.

Rack and Pinion Drive

A forced drive system.

Variable-frequency Drive (VFD) Unit

The construction hoist is equipped with a VFD unit, allowing control of key features such as hoist control logics and smart voice module.The car features smooth start and stop operation, enhancing ride comfort for passengers.

Safety Device

If the descending speed of the hoist exceeds the rated speed, the device will automatically lock and the hoist will stop immediately. The power to the hoist is cut off.

Tie-in

Drive Unit

The gear motor of the construction hoist drives the pinion to move up and down along the rack. This allows the rollers to travel up and down the mast.

Mast Section

Rack and Pinion Drive

A forced drive system.

Variable-frequency Drive (VFD) Unit

SPECIFICATIONS

Single Cage

Model	CH200	CH200
Rated load（kg）	2000	2000
Speed（m/min）	0-46(Can be customized)	0-63
Control system	VFC	VFC
Motor power（kW）	2 × 11 / 18.5 (50 / 87 Hz)	3 × 11 / 18.5 (50 / 87 Hz)
Inverter power（kW）	37	75
Power supply	380 V / 50 Hz	380 V / 50 Hz
Standard rail section (mm)	650 × 650 × 1508	650 × 650 × 1508
Cage dimensions (mm)	3200 × 1500 × 2200	3200 × 1500 × 2200
Maximum height (m)	300	300

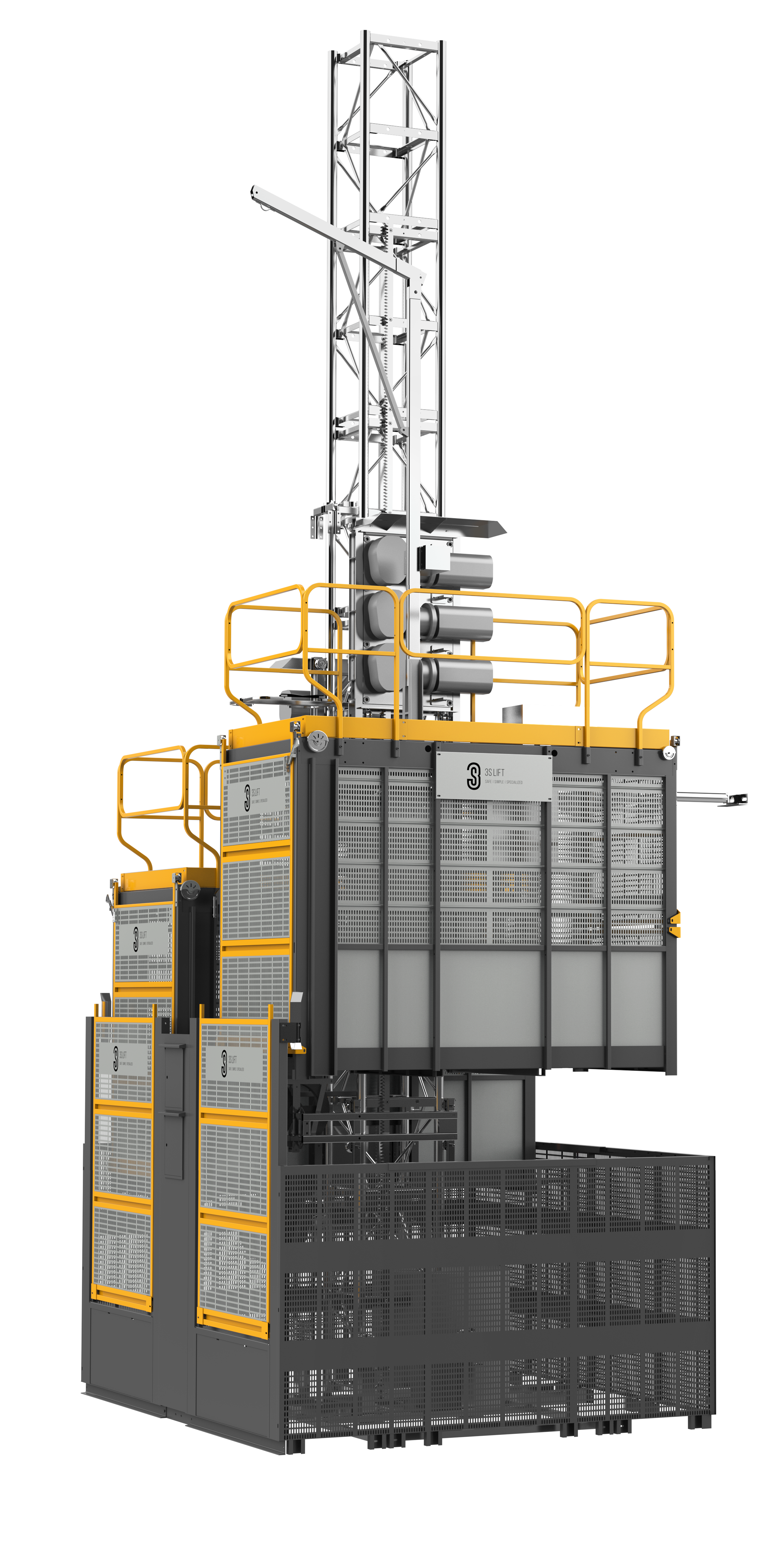

Twin Cages

Model	CH200 / 200	CH200/200
Rated load（kg）	2000 / 2000	2000 / 2000
Speed（m/min）	0-46(Can be customized)	0-63
Control system	VFC	VFC
Motor power（kW）	2 × 2 × 11 / 18.5 (50 / 87 Hz)	2 × 3 × 11 / 18.5 (50 / 87 Hz)
Inverter power（kW）	2 × 37	2 × 75
Power supply	380 V / 50 Hz	380 V / 50 Hz
Standard rail section (mm)	650 × 650 × 1508	650 × 650 × 1508
Cage dimensions (mm)	3200 × 1500 × 2200	3200 × 1500 × 2200
Maximum height (m)	300	300
